Removal Procedure

  1. Open and support the endgate.
  2. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Remove [8x]

  3. Pickup Box Endgate Access Hole Cover Panel (2) - Remove

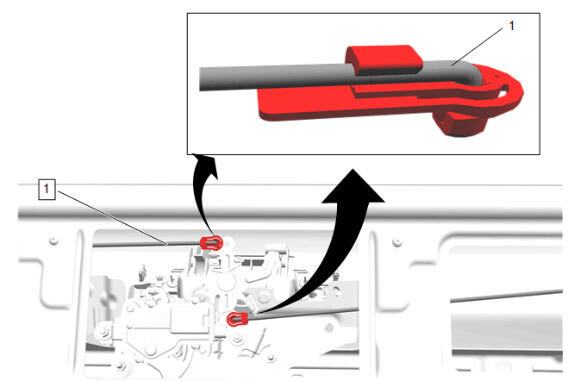

  4. GM6163283Courtesy of GENERAL MOTORS COMPANY

    Release both pickup box endgate latch rods (1) from the pickup box endgate lock actuator and reposition.

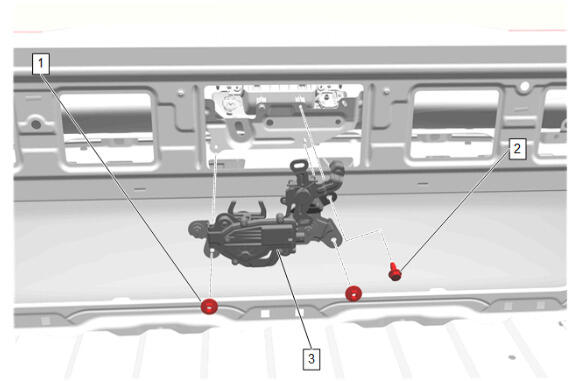

  5. GM6163284Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  6. Pickup Box Endgate Lock Actuator Nut (1) - Remove [2x]
  7. Pickup Box Endgate Latch Handle Bolt (2) - Remove
  8. Pickup Box Endgate Lock Actuator (3) - Remove
