Installation Procedure

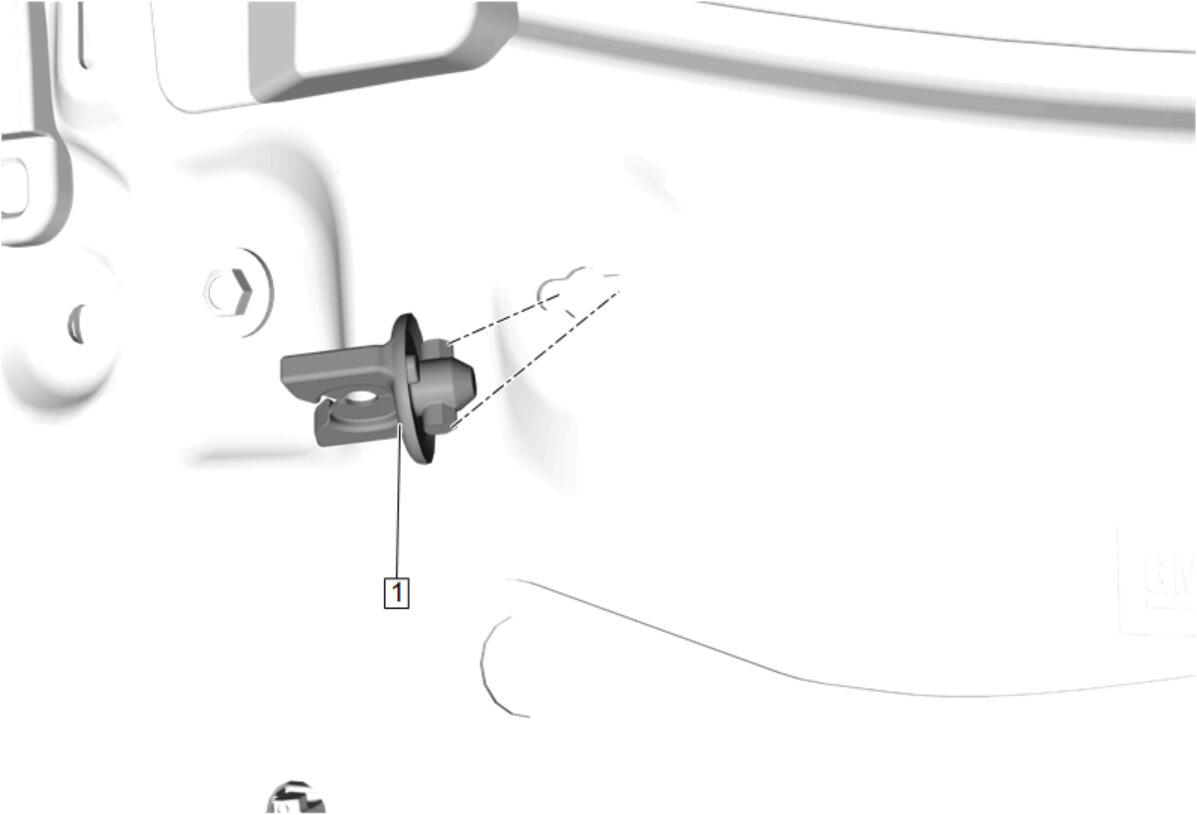

  1. GM5034597Courtesy of GENERAL MOTORS COMPANY

    Twist the front side door locking rod clip (1) into the door panel.

  2. GM5034544Courtesy of GENERAL MOTORS COMPANY

    Install the front side door locking rod (1) into the latch.

  3. Push the front side door locking rod (1) into the front side door locking rod clip.
  4. Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
