Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

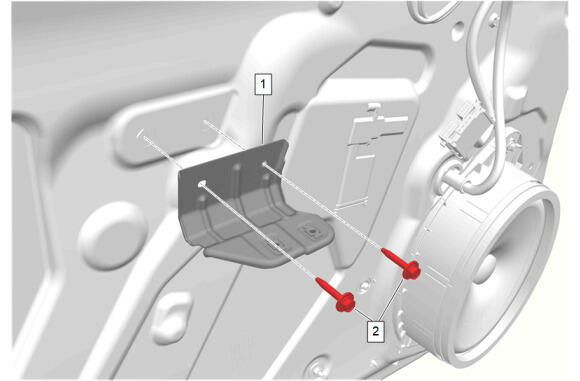

Front Side Door Armrest Bracket Bolt (2) - Remove [2x]
Front Side Door Armrest Bracket (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

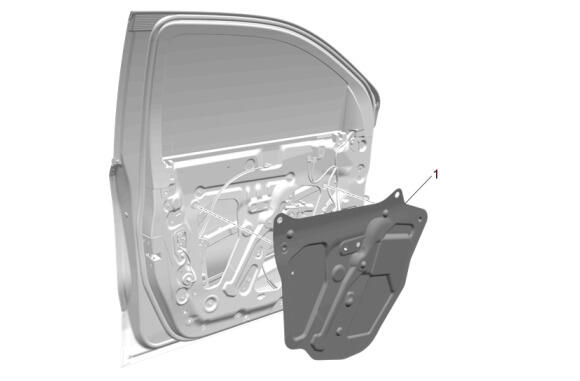

Route the front side door inside handle cable through the hole in front side door water deflector (1) while removing it from the door.
Front Side Door Water Deflector (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

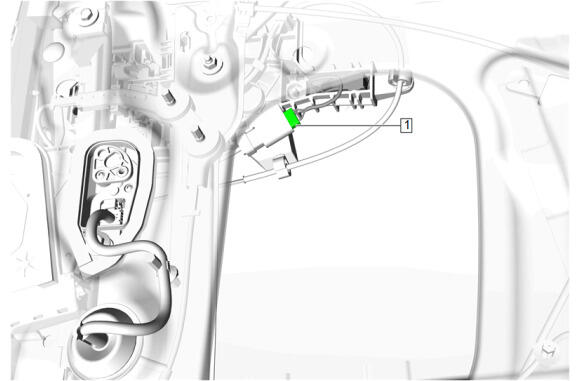

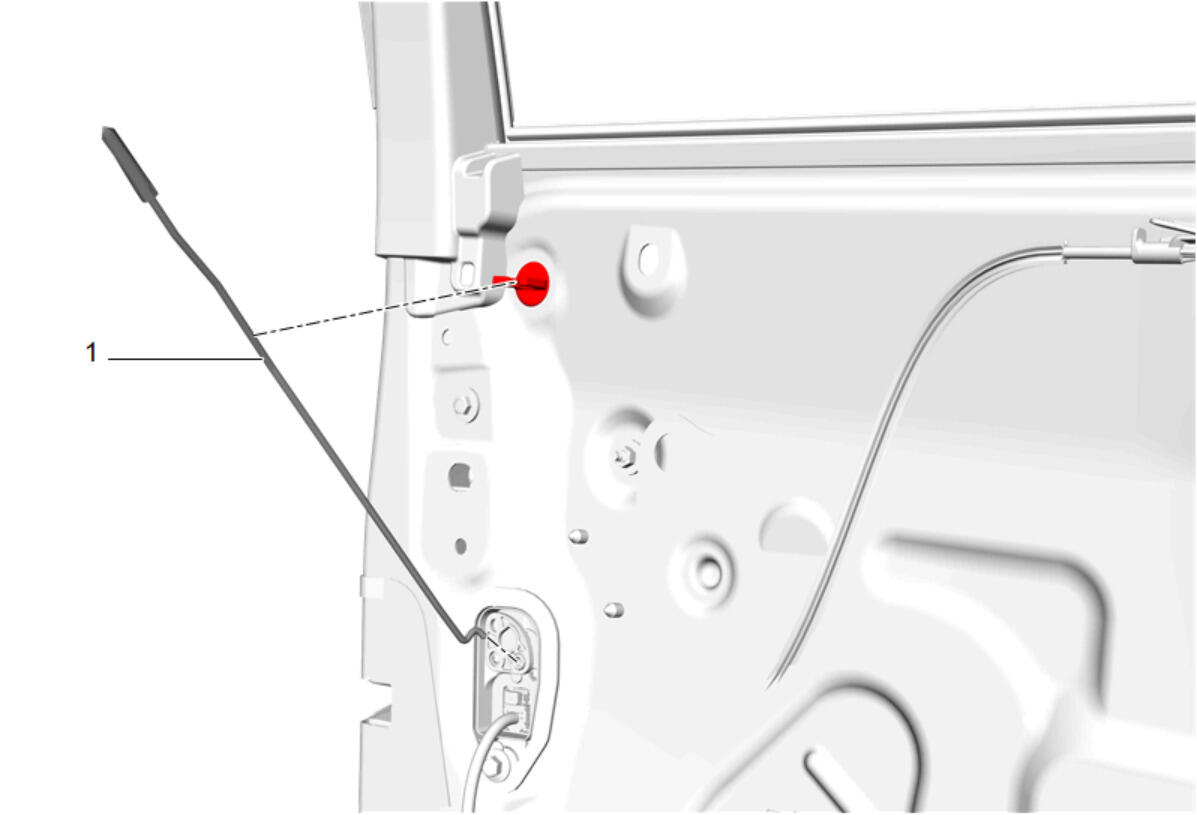

Pull the locking rod (1) from the locking rod clip.
Turn the locking rod (1) down while twisting it out, releasing it from the latch.
Courtesy of GENERAL MOTORS COMPANY

With the front side door window in the full up position, tape the window to the upper door frame before releasing the window from the window sash.
Front Side Door Window Regulator Nut (1) - Remove [2x]
Front Side Door Window Regulator (2) - Reposition
Courtesy of GENERAL MOTORS COMPANY

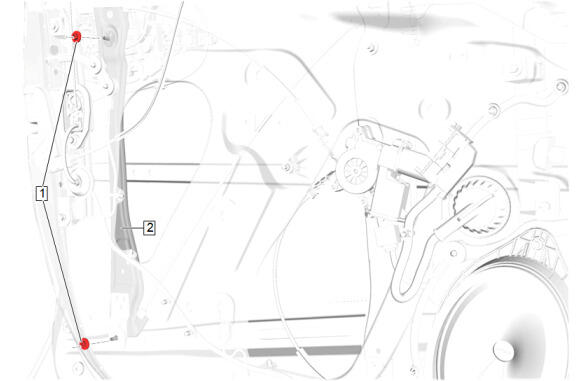

Front Side Door Window Channel Retainer Bolt (1) - Remove [2x]
Remove the wiring harness from the front side door window channel retainer.
Courtesy of GENERAL MOTORS COMPANY

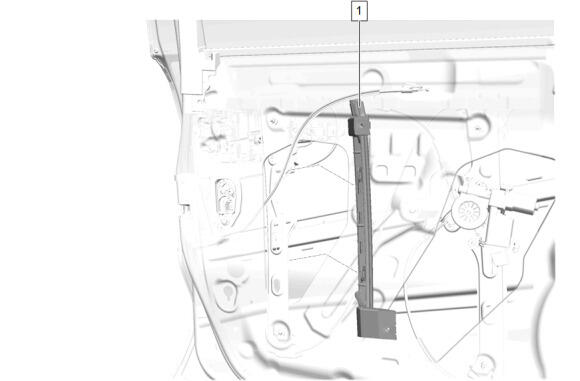

Front Side Door Window Channel Retainer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

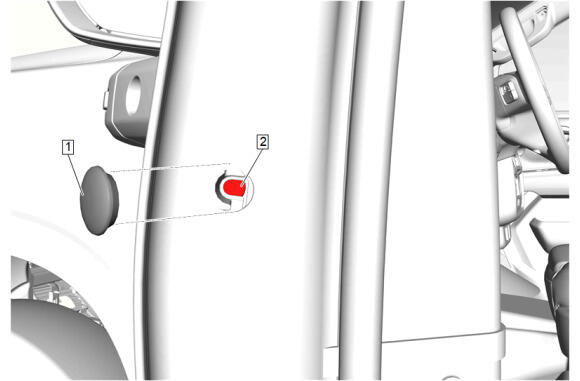

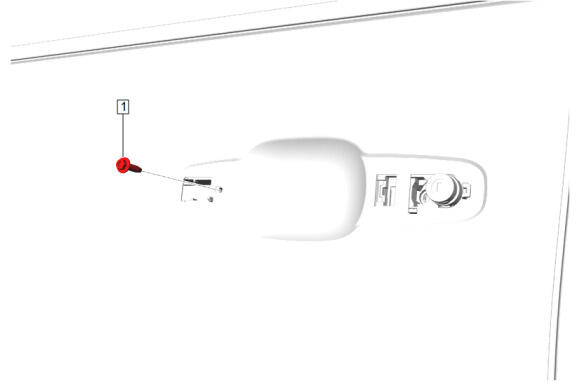

Front Side Door Outside Handle Access Hole Plug (1) - Remove
Pull the door handle to the open position then turn the front side door outside handle bracket rear bolt (2) counterclockwise until it clicks.
Courtesy of GENERAL MOTORS COMPANY

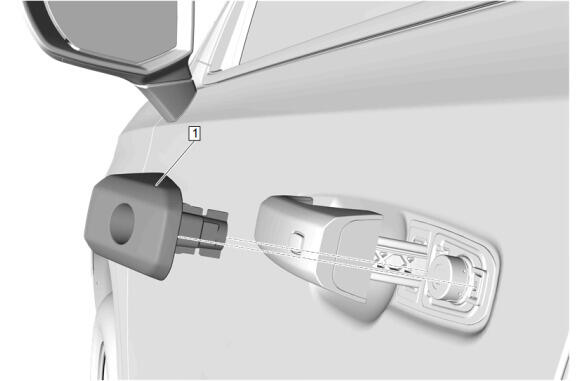

Front Side Door Lock Cylinder Bezel (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

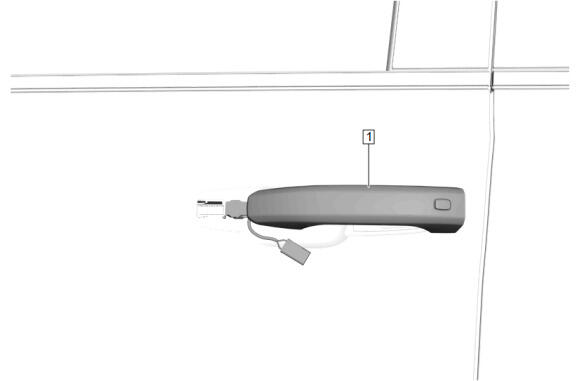

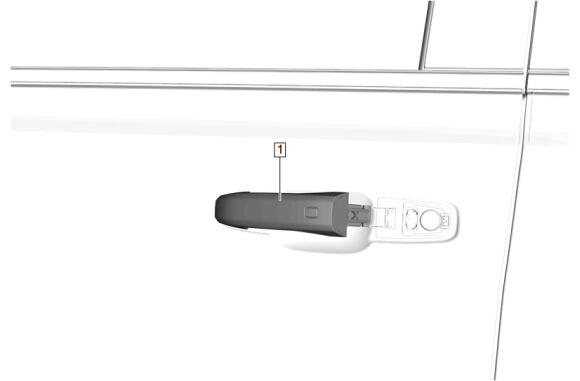

Slide the front side door outside handle (1) rearward and then outwards in a swing motion, releasing the rear part of the handle from the front side door outside handle bracket.
Courtesy of GENERAL MOTORS COMPANY

Swing the front part of the front side door outside handle (1) to remove.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Bezel Insulator (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Latch Bolt (1) - Remove [3x]
Front Side Door Latch Bolt (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Remove retainers as necessary.

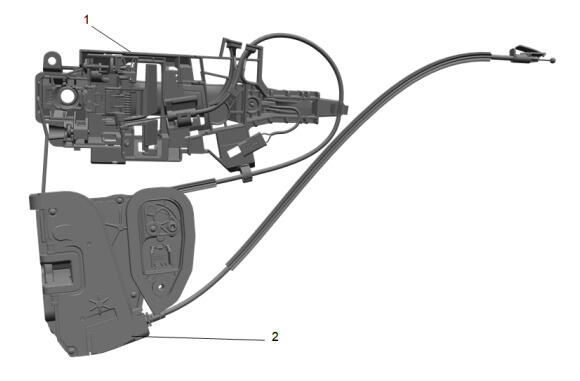

Remove the front side door outside handle bracket (1) and the front side door latch (2) as an assembly.
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Rod (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using the appropriate tool, open the front side door latch access cover to view the front side door inside handle cable (1).
Remove the front side door inside handle cable (1) from the front side door latch.
