Removal Procedure

  1. Front Side Door Trim - Left Side - Remove - Front Side Door Trim Removal and Installation

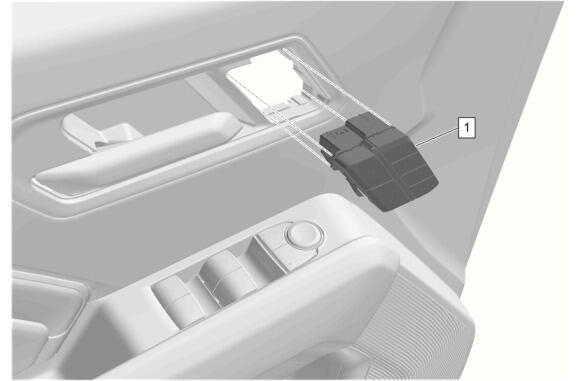

  2. GM6143356Courtesy of GENERAL MOTORS COMPANY

    From the backside of the front side door trim, use a flat-bladed plastic trim tool to gently push in on the side tabs to release the door lock switch (1) from the front side door trim.

  3. Door Lock Switch (1) - Remove
