Installation Procedure

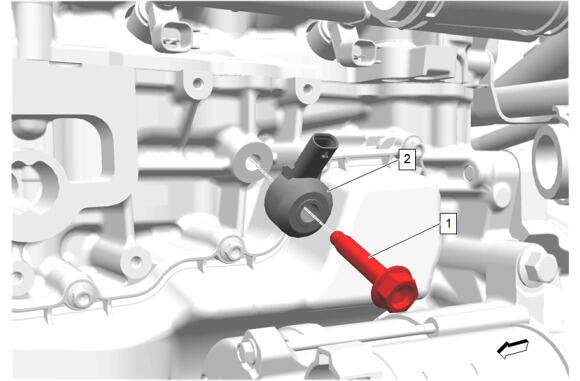

Knock Sensor (2) - Install
- Knock Sensor Bolt (1) - Install and tighten - Fastener Specifications
- Connect the electrical connector.
Engine Coolant Flow Control Valve Seal (2) - Install NEW
- Engine Coolant Flow Control Valve (1) - Install
Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [5x] - Fastener Specifications
Electrical Connector (1) @ Engine Coolant Flow Control Valve - Connect [3x]
Engine Coolant Thermostat Housing Inlet Pipe (2) @ Engine Coolant Flow Control Valve - Install
- Thermostat Bypass Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Exhaust Manifold Outlet Pipe (2) @ Engine Coolant Flow Control Valve - Install
- Thermostat Bypass Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Exhaust Manifold Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications
Engine Oil Cooler Coolant Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install
- Engine Oil Cooler Coolant Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Thermostat Bypass Pipe (2) @ Engine Coolant Flow Control Valve - Install
- Thermostat Bypass Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- NOTE:
Some components not shown for graphic clarity.
Thermostat Bypass Pipe Bolt (1) - Install and tighten - Fastener Specifications

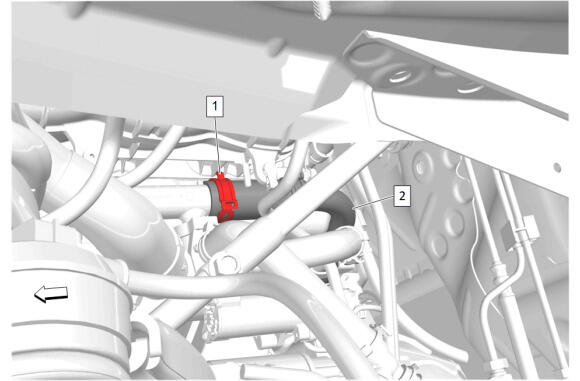

Radiator Inlet Hose (2) @ Engine Coolant Flow Control Valve - Install
- Radiator Inlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Install underbody panels as necessary. Underbody Panel Component Locator
- Fill the cooling system. Cooling System Draining and Filling (GE 47716) , or Cooling System Draining and Filling (Static)
Refer to Fastener Caution .
