Removal Procedure

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

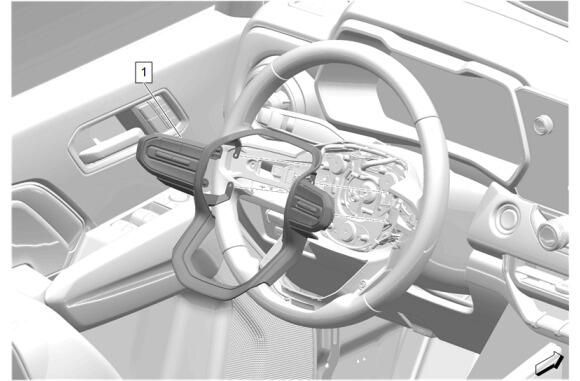

Use a flat bladed plastic trim tool to depress the steering wheel airbag access hole cover detents to remove the left and right steering wheel airbag access hole covers (1).
Courtesy of GENERAL MOTORS COMPANY

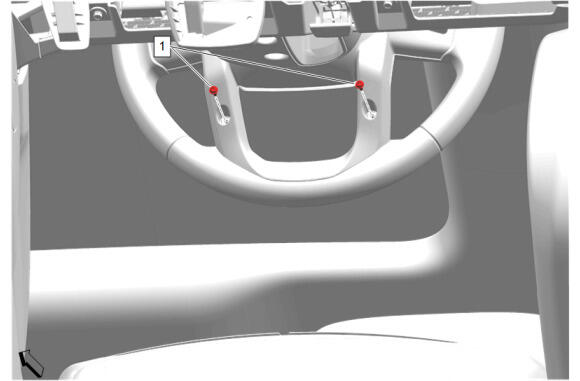

Steering Wheel Airbag Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Use a flat bladed plastic trim tool to separate the steering wheel airbag bracket (1) from the steering wheel horn plate (2).
Courtesy of GENERAL MOTORS COMPANY

Pull the steering wheel airbag away from the steering wheel to expose the electrical connections.
Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Steering Wheel Airbag (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch Bolt (1) @ Steering Wheel Trim Spoke Cover Applique - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

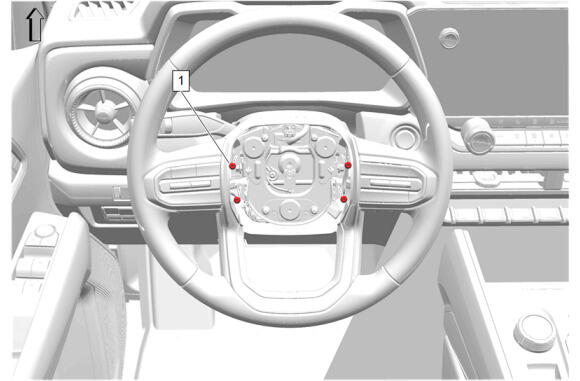

Steering Wheel Spoke Cover Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Steering Wheel Trim Spoke Cover Applique (1) - Remove
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

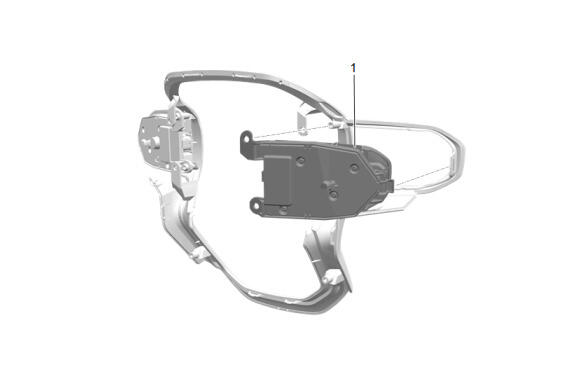

Cruise Control Switch Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Cruise Control Switch (1) - Remove
