Installation Procedure

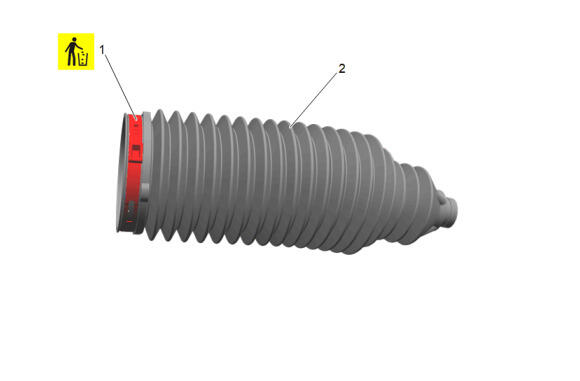

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).

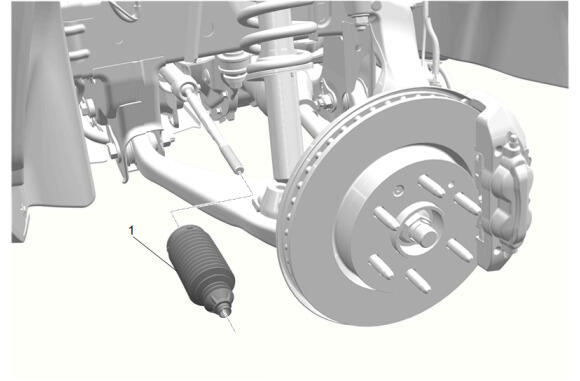

Steering Gear Boot (1) - Install

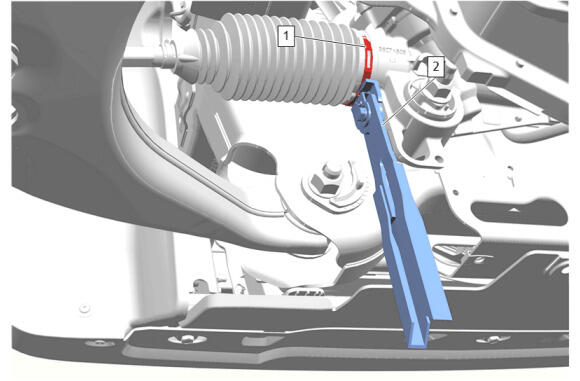

Using the CH-22610 Keystone Clamp Pliers (2), tighten the steering gear boot inner clamp (1).
Steering Gear Boot Clamp (1) - Install

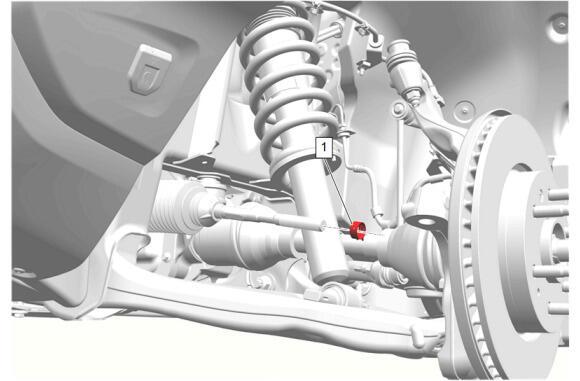

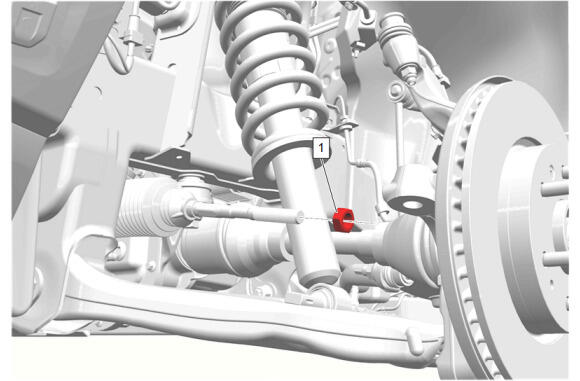

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
- CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.
If reusing the steering linkage outer tie rod (1), add a small amount of grease on the lip of the rubber boot seal to prevent twisting or deforming of the boot. Do NOT apply grease to the ball joint stud. Adhesives, Fluids, Lubricants, and Sealers

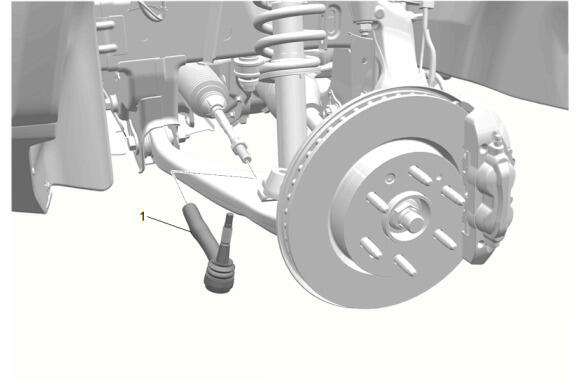

- Steering Linkage Outer Tie Rod (1) - Install
- NOTE:
Some components not shown for graphic clarity.

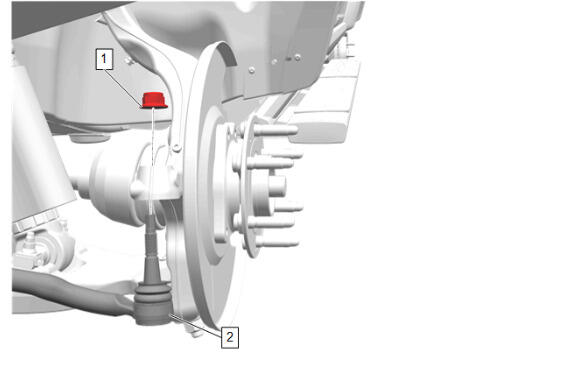

Steering Linkage Outer Tie Rod (2) @ Front Steering Knuckle - Install
- Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
- Install underbody panels as necessary. Underbody Panel Component Locator
- Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement (- SD0) , or Front Wheelhouse Liner Replacement (SD0)
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (RD6 / RPP) , or Tire and Wheel Removal and Installation (QW5 / R1U / R34 / PZX / PZI / RQ8 / RQL / RD4 / RD5 / RPS / NZS / NZT)
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
