Installation Procedure

  1. GM6003673Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Gear Shift Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Automatic Transmission Electronic Control Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector. (3)

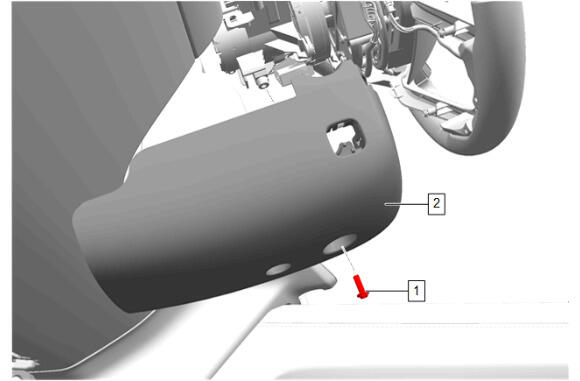

  4. GM6467074Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install

  5. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

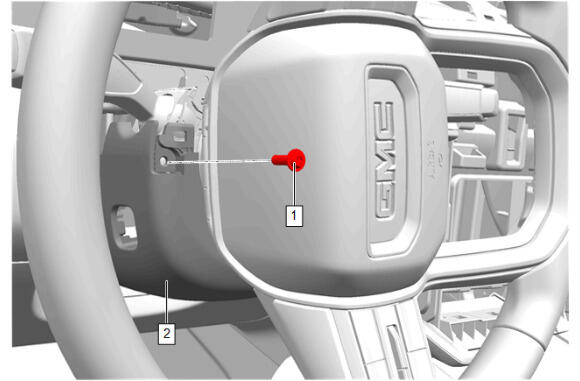

  6. GM6467073Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  7. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

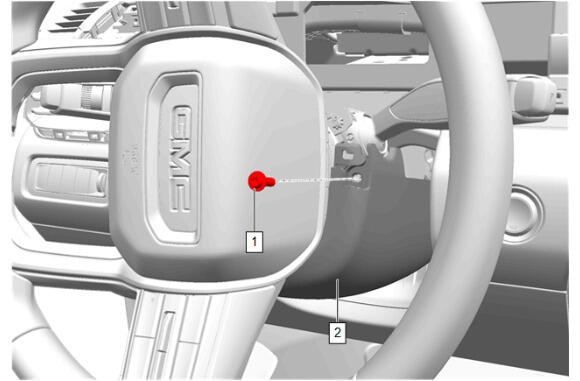

  8. GM6467072Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  9. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  10. Turn the steering wheel to the centered position.

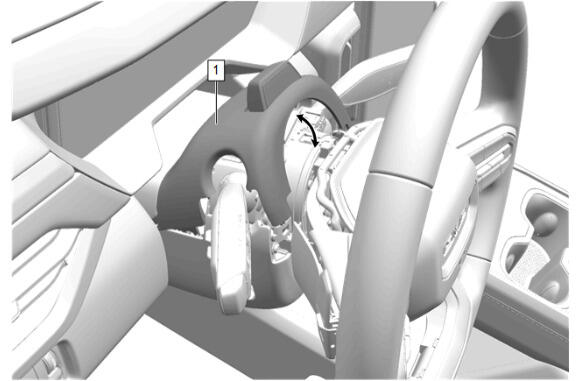

  11. GM6472501Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
