Removal Procedure
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Drain the cooling system. Cooling System Draining and Filling (GE 47716)
Underbody Front Air Deflector Bolt (1) - Remove [10x]
- Underbody Front Air Deflector Retainer (2) - Remove [2x]
Underbody Front Air Deflector (1) - Remove
Radiator Outlet Hose Bracket Bolt (1) - Remove
Hose Clamp (2) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Radiator Outlet Hose (1) @ Water Pump Module - Remove
- Hose Clamp (3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Water Pump Inlet Hose (4) @ Water Pump Module - Remove
- Hose Clamp (5) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Water Pump Inlet Hose (4) @ Engine Oil Cooler - Remove
Disconnect the electrical connector and release the wiring harness retainers as necessary. (1)
Water Pump Bolt (1) - Remove
Water Pump Bolt (2) - Remove [2x]
Hose Clamp (3) @ Lower Crankcase Extension - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Water Pump Module (1) & Lower Crankcase Extension Coolant Hose (2) - Remove

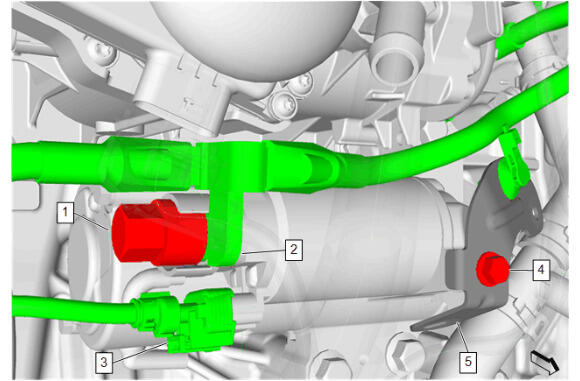

Battery Positive and Negative Cable Nut (1) - Remove
- Battery Positive and Negative Cable (2) - Remove
- Electrical Connector (3) - Disconnect
- Engine Wiring Harness Bracket Bolt (4) - Remove
- Engine Wiring Harness Bracket (5) - Reposition

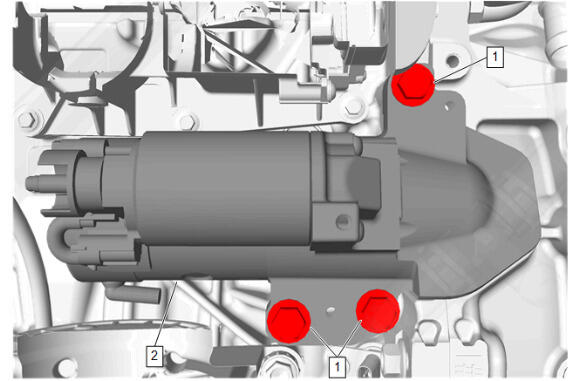

Starter Bolt (1) - Remove [3x]
- Starter (2) - Remove
