Installation Procedure

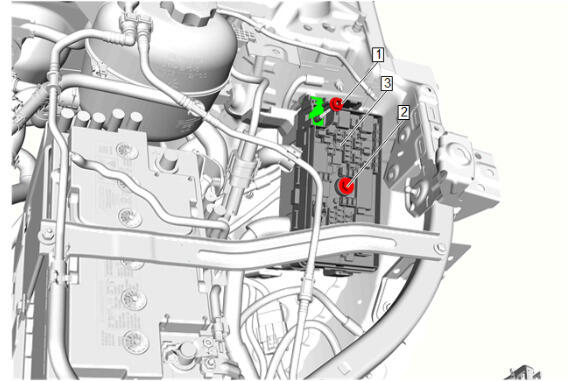

  1. GM6382642Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Engine Wiring Harness Junction Block Bolt (2) - Tighten - Fastener Specifications
  3. Install wiring harness terminals.
  4. Engine Wiring Harness Fuse Block Nut (1) - Install and tighten - Fastener Specifications

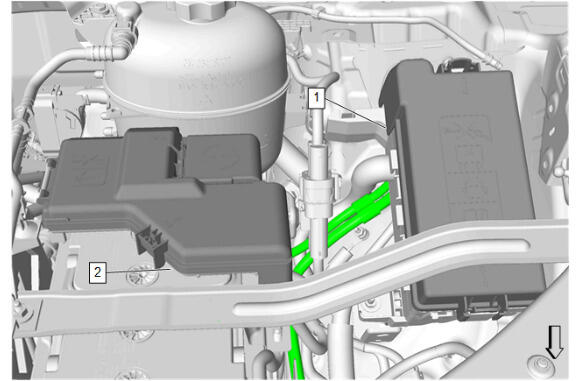

  5. GM6382147Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Cover (1) - Install

  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
