Installation Procedure

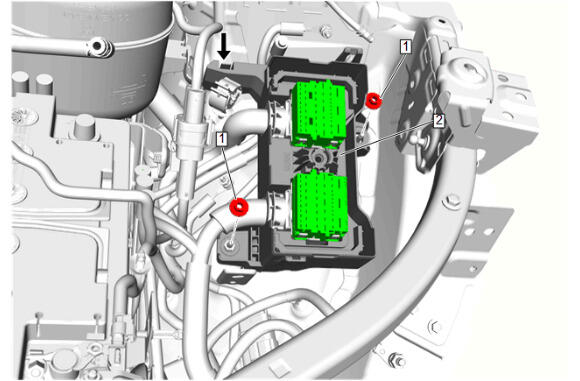

  1. GM6382650Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Engine Wiring Harness Fuse Block Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the wiring harness retainers.
  4. GM6382642Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (3) - Install

  5. Engine Wiring Harness Junction Block Bolt (2) - Tighten - Fastener Specifications
  6. Install wiring harness terminals.
  7. Engine Wiring Harness Fuse Block Nut (1) - Install and tighten - Fastener Specifications
  8. GM6382147Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Cover (1) - Install

  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
