Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

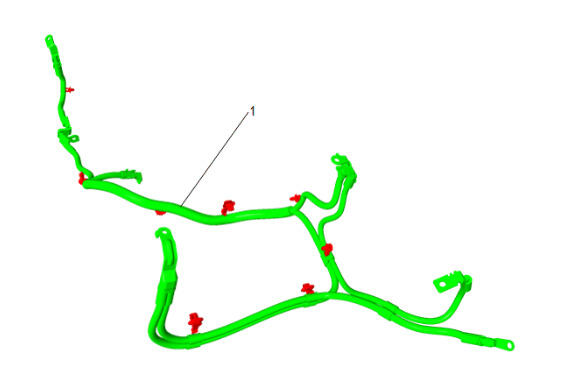

Battery Positive and Negative Cable (1) - Install
Courtesy of GENERAL MOTORS COMPANY

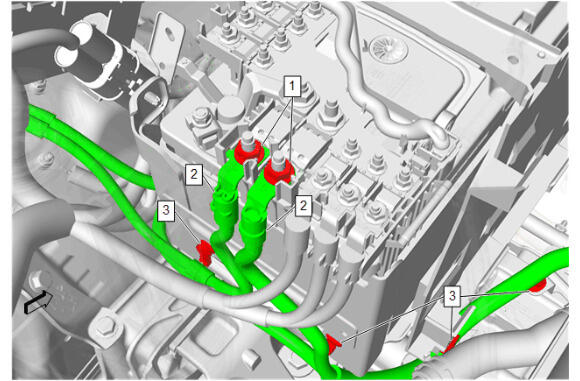

Install the wiring harness retainers as necessary. (3)
Battery Positive and Negative Cable (2) - Install [2x]

CAUTION:

Refer to Fastener Caution

Battery Positive and Negative Cable Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

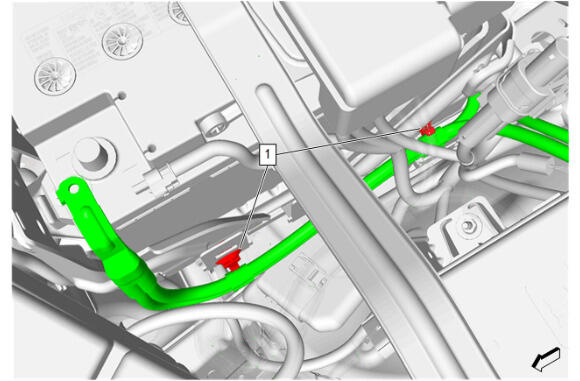

Wiring Harness Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

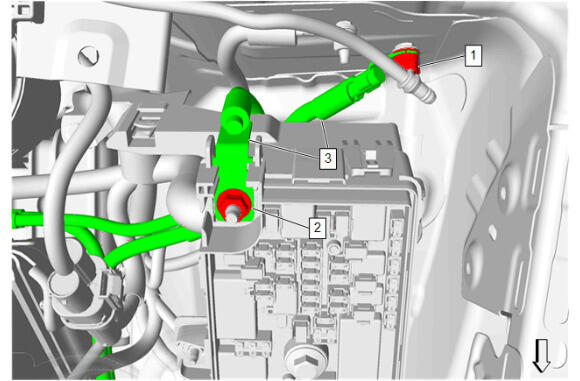

Battery Positive and Negative Cable (3) - Install
Battery Positive and Negative Cable Nut (2) - Install and tighten - Fastener Specifications
Wiring Harness Ground Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Battery Distribution Engine Compartment Fuse Block Cover (2) - Install
Engine Wiring Harness Fuse Block Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

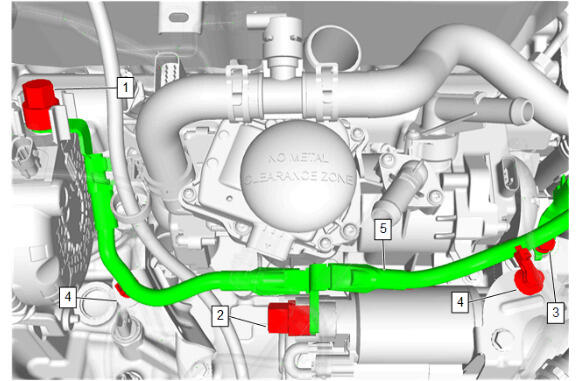

Battery Positive and Negative Cable (5) - Install
Wiring Harness Retainer (4) - Install [2x]
Battery Negative Cable Ground Bolt (3) @ Transmission - Install and tighten - Fastener Specifications
Battery Positive and Negative Cable Nut (2) @ Starter - Install and tighten - Fastener Specifications
Battery Positive and Negative Cable Nut (1) @ Generator - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Gasket @ Intake Manifold (1) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold (1) - Install
Intake Manifold Bolt (2) - Install and hand tighten [5x]
Intake Manifold Bolt (1) - Tighten in sequence [5x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) - Install
Connect the electrical connectors and install the wiring harness retainers as necessary.
Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator - Install
Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten - Fastener Specifications
Intake Manifold Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Hose (2) - Install
Charge Air Cooler Inlet Air Hose Clamp Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the hose retainers (1) as necessary.
Courtesy of GENERAL MOTORS COMPANY

Install the hose retainers (1) as necessary.
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Coolant Hose Clamp (4) - Tighten - Fastener Specifications
Charge Air Cooler Coolant Hose (3) - Install [2x]
Charge Air Cooler Coolant Hose Retainer (2) - Engage [2x]
Charge Air Cooler Outlet Air Hose Clamp (1) - Tighten [2x] - Fastener Specifications
Connect the electrical connector. (5)
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (4) - Install
Air Cleaner Outlet Duct Nut (3) - Install and tighten - Fastener Specifications
Air Cleaner Outlet Duct Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Oil Filler Cap - Install
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Fill the cooling system. Cooling System Draining and Filling (GE 47716)
