Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

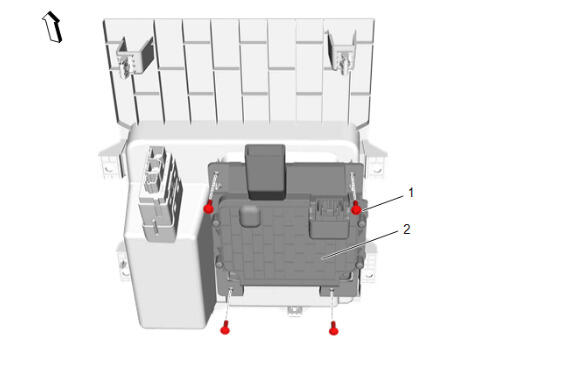

Wireless Charging System Module (2) @ Wireless Charging System Module Bracket (3) - Install

CAUTION:

Refer to Fastener Caution .

Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Assembly (2) - Install
Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

NOTE:

During installation of the front floor console front compartment, ensure the front auxiliary cooling intermediate duct is properly engaged.

Front Floor Console Compartment (2) - Install
Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Close the front floor console armrest (1).
Front Floor Console - Install - Front Floor Console Removal and Installation
