Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module (2) @ Wireless Charging System Module Bracket (3) - Install

CAUTION:

Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module Assembly (2) - Install
Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

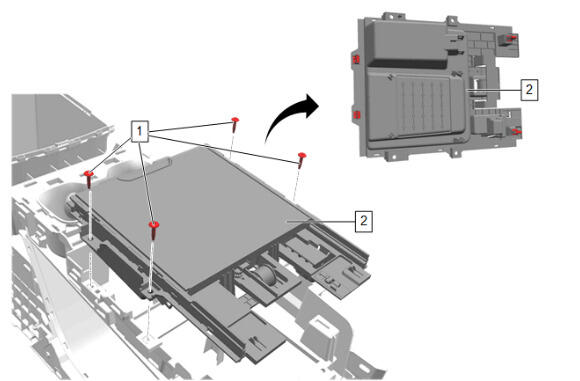

Front Floor Console Front Compartment. (2) - Install
Front Floor Console Front Compartment Bolt. (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

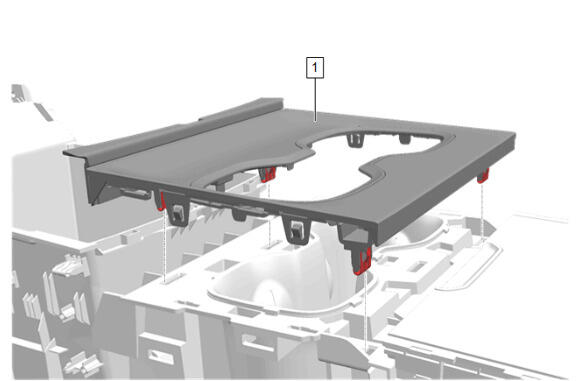

Front Floor Console Compartment Divider (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

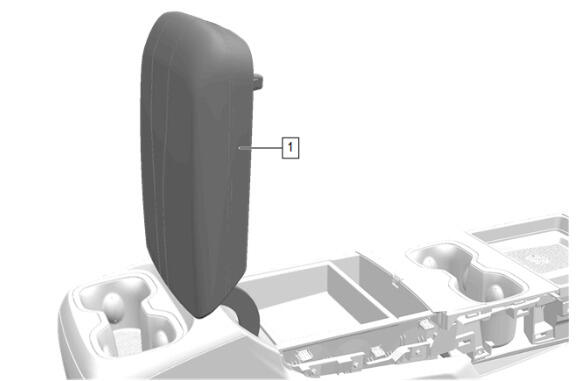

Close the front floor console armrest (1).
Front Floor Console (1) - Install - Front Floor Console Removal and Installation
