Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

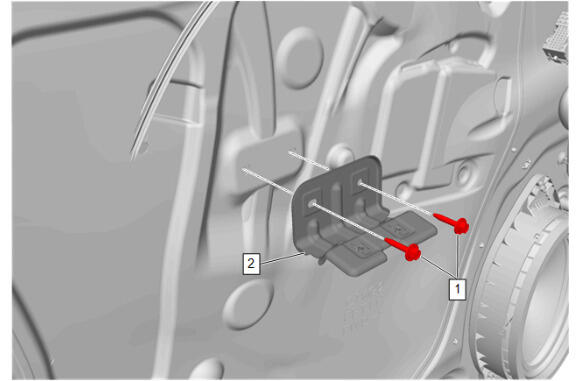

Front Side Door Window Channel Retainer (2) - Install

1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
CAUTION:

Refer to Fastener Caution

5. Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications

Courtesy of GENERAL MOTORS COMPANY

If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

Courtesy of GENERAL MOTORS COMPANY

Place the window regulator sash retainers (1) in the full up position.

Courtesy of GENERAL MOTORS COMPANY

Remove the tape holding the front side door window (1) in the full up position.

Courtesy of GENERAL MOTORS COMPANY

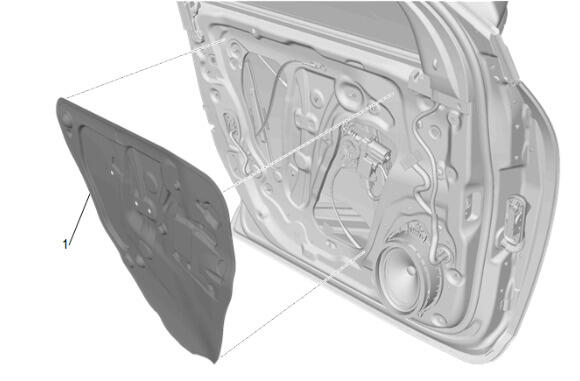

Front Side Door Water Deflector (1) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Armrest Bracket (2) - Install

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (1) - Install - Front Side Door Trim Removal and Installation
