Fastener Specifications

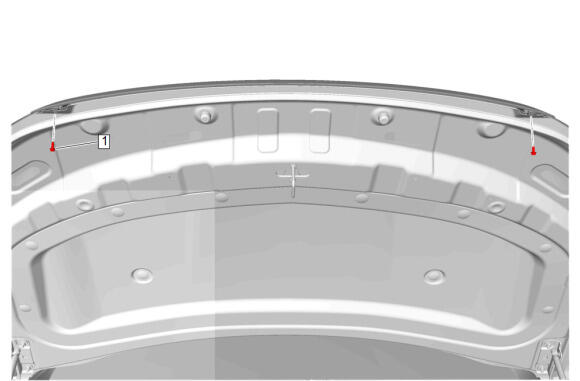

Hood Front Molding
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Hood Front Molding Bolt [2x] | - | - | 4.7 N.m (42 lb in) | Hood Front Molding Replacement |

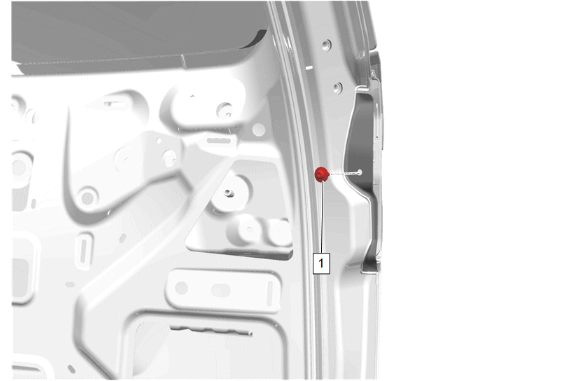

Rear Closure Center Applique
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Center Applique Bolt | - | - | 4.7 N.m (42 lb in) | Rear Closure Center with License Plate Lamp Applique Replacement |

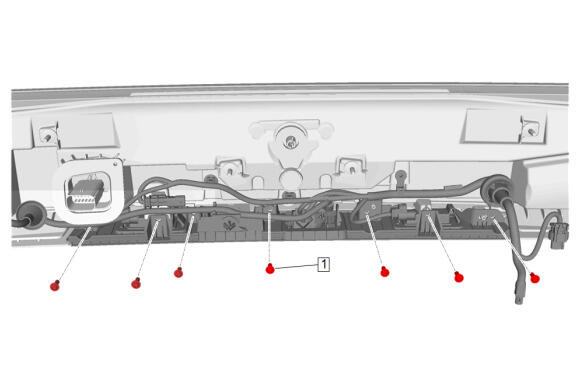

Rear Closure Center with License Plate Lamp Applique
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Closure Fixed Handle Bolt [7x] | - | - | 2.5 N.m (22 lb in) | Rear Closure Center with License Plate Lamp Applique Replacement |
Rear End Spoiler
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear End Spoiler Nut [6x] | - | - | 9 N.m (80 lb in) | Rear End Spoiler Replacement |
| 2 | Rear End Spoiler Bolt [6x] | - | Yes | 6 N.m (53 lb in) | Rear End Spoiler Replacement |
