Installation Procedure

  1. GM6389407Courtesy of GENERAL MOTORS COMPANY

    Place the front side door window (1) into the door frame.

  2. Place the front side door window (1) in the full up position and tape in place.
  3. GM6389398Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Channel Retainer (2) - Install

  4. Connect the wiring harness retainers as necessary.
  5. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    6. CAUTION:

    Refer to Fastener Caution .

  6. Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
  7. GM6389404Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator (2) - Install

  8. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  9. Front Side Door Window Regulator Nut (1) - Install and tighten [5x] - Fastener Specifications
  10. Connect the electrical connector.
  11. GM6389402Courtesy of GENERAL MOTORS COMPANY

    Place the window regulator sash retainers (1) in the full up position.

  12. GM6389403Courtesy of GENERAL MOTORS COMPANY

    Remove the tape holding the front side door window (1) in the full up position.

  13. GM6389401Courtesy of GENERAL MOTORS COMPANY

    Install the sealing strip (1) to the flange of the door and push downward until fully seated.

  14. Front Side Door Window Inner Sealing Strip (1) - Install
  15. GM6389400Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (1) - Install

  16. GM6389399Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications

  17. Install by pressing down firmly on the front side door window belt reveal molding (1) until seated to the pinch-weld flange on the door panel.
  18. GM6389396Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding (1) - Install

  19. GM6389397Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Belt Reveal Molding Bolt (1) - Install and tighten - Fastener Specifications

  20. GM6389408Courtesy of GENERAL MOTORS COMPANY

    Spray the front side door weatherstrip with a suitable lubricant to assist in sliding the front side door upper reveal molding (1) down the center of the weatherstrip.

  21. Front Side Door Window Upper Reveal Molding (1) - Install
  22. GM6465243Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector (1) - Install

  23. GM6465230Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Bracket (2) - Install

  24. Front Side Door Armrest Bracket Bolt (1) - Remove [2x] - Fastener Specifications

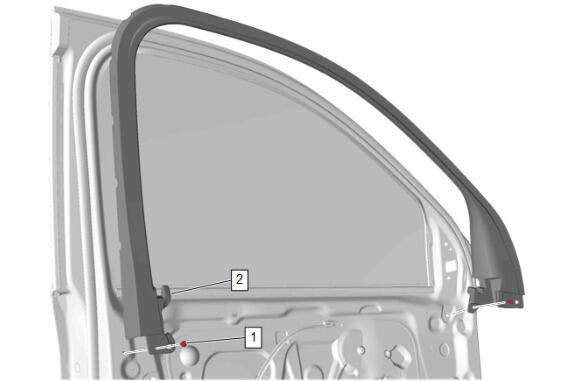

  25. GM6465556Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the door weatherstrip is not trapped below the front side door window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.

    Front Side Door Window Garnish Molding (2) - Install

  26. Front Side Door Window Garnish Molding Retainer (1) - Install [2x]
  27. GM6465241Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (1) - Install - Front Side Door Trim Removal and Installation

  28. Ensure the window system operates properly.
