Fastener Specifications

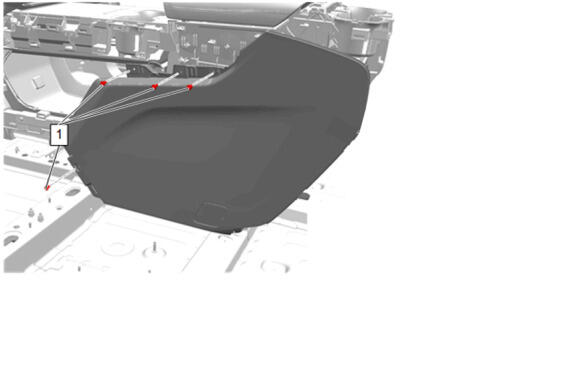

GM6656036Courtesy of GENERAL MOTORS COMPANY
Front Floor Rear Console Side Trim Panel Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Rear Console Side Trim Panel Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Armrest Replacement

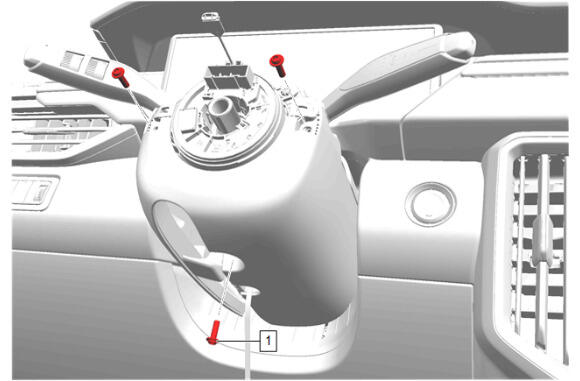

GM6478727Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Steering Column Lower Trim Cover

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Steering Column Lower Trim Cover Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement (+UKL) , or Instrument Panel Steering Column Lower Trim Cover Replacement (- UKL)

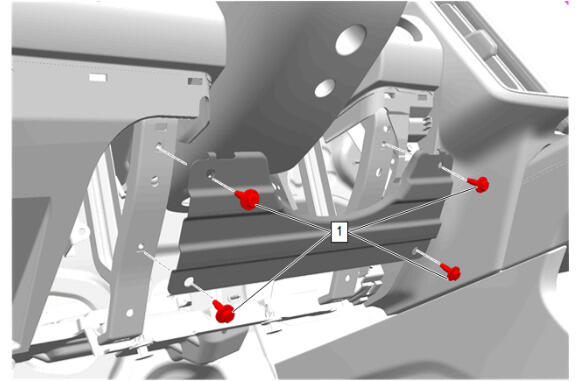

GM6478724Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster Deflector

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Deflector Bolt [4x] - - 9 N.m (80 lb in) Instrument Panel Knee Bolster Deflector Replacement

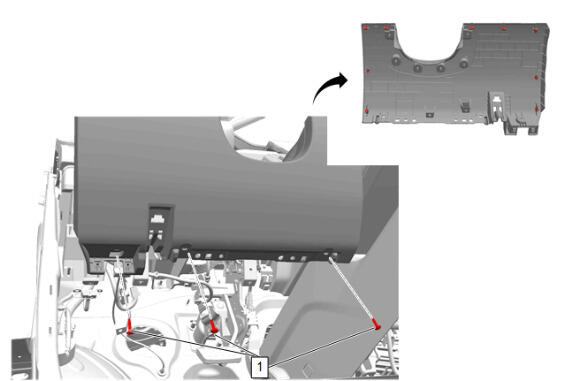

GM6478725Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Knee Bolster

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Knee Bolster Bolt [3x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement

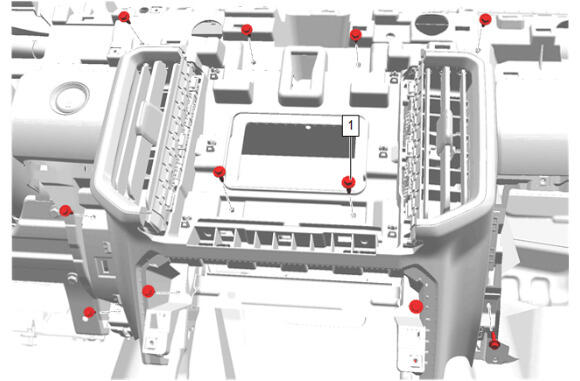

GM6478726Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Lower Center Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Lower Trim Panel Bolt [11x] - - 2.5 N.m (22 lb in) Instrument Panel Lower Center Trim Panel Replacement

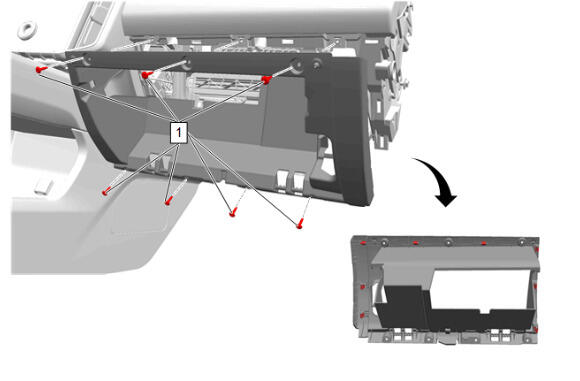

GM6478722Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Door Opening Frame

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Compartment Bolt [7x] - - 2.5 N.m (22 lb in) Instrument Panel Compartment Door Opening Frame Replacement

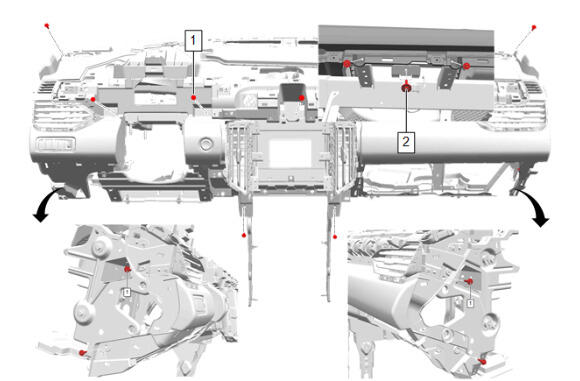

GM6478731Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [13x] - - 2.5 N.m (22 lb in) Instrument Panel Assembly Replacement
2 Instrument Panel Airbag Bolt - - 9 N.m (80 lb in) Instrument Panel Assembly Replacement

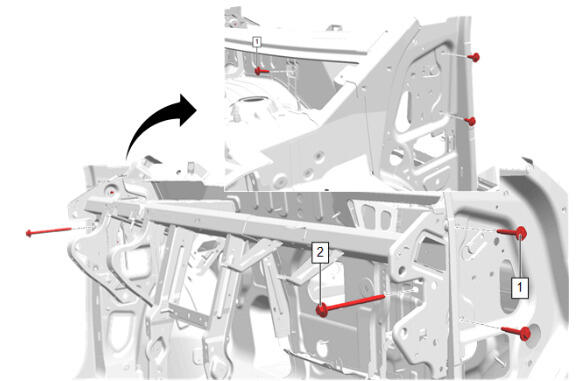

GM6478729Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Bolt [5x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Replacement
2 Instrument Panel Tie Bar Bolt [2x] - - 12 N.m (106 lb in) Instrument Panel Tie Bar Replacement

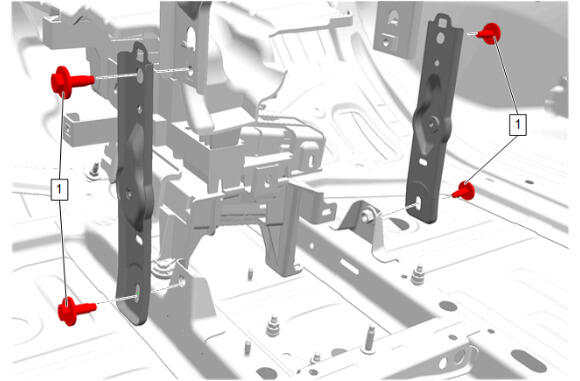

GM6478728Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar Brace

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Tie Bar Brace Bolt [4x] - - 22 N.m (16 lb ft) Instrument Panel Tie Bar Brace Replacement
GM6478712Courtesy of GENERAL MOTORS COMPANY

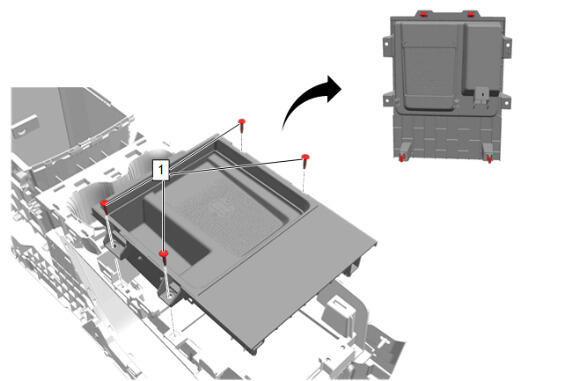

Front Floor Console Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Front Compartment Replacement (with door) , or Front Floor Console Front Compartment Replacement (without door)

GM6467016Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Front Compartment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Front Compartment Replacement (with door) , or Front Floor Console Front Compartment Replacement (without door)

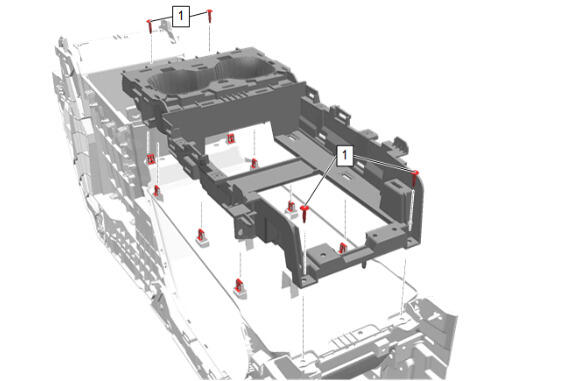

GM6478709Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Compartment Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Compartment Bolt [4x] - - 2.5 N.m (22 lb in) Front Floor Console Compartment Trim Plate Replacement
GM6478715Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Stowage Tray

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Stowage Tray Bolt [6x] - - 2.5 N.m (22 lb in) Front Floor Console Stowage Tray Replacement

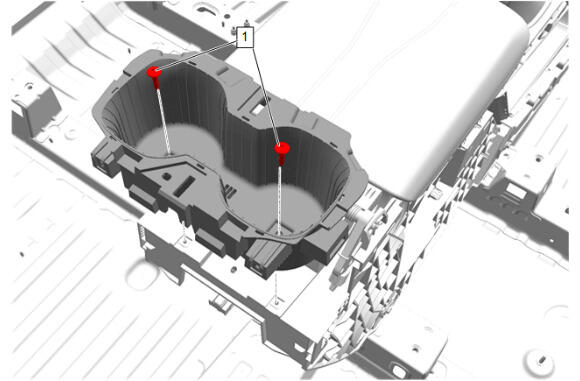

GM6478713Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Cup Holder

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cup Holder Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Rear Cup Holder Replacement

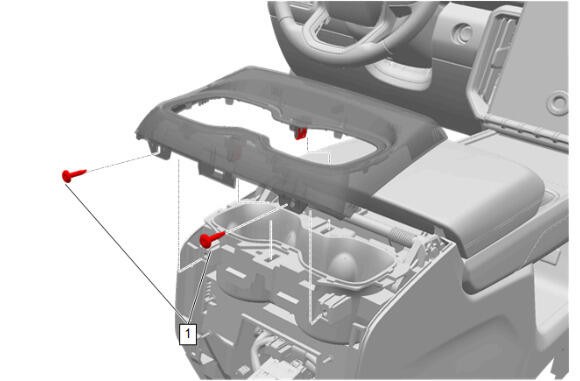

GM6478717Courtesy of GENERAL MOTORS COMPANY
Front Floor Rear Console Trim Plate

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Cup Holder Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Rear Console Trim Plate Replacement

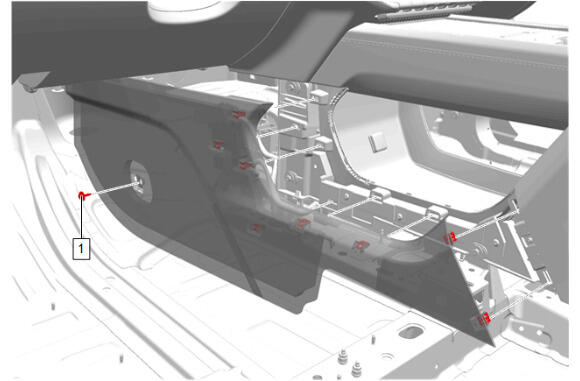

GM6478710Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Extension Panel - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Left Side

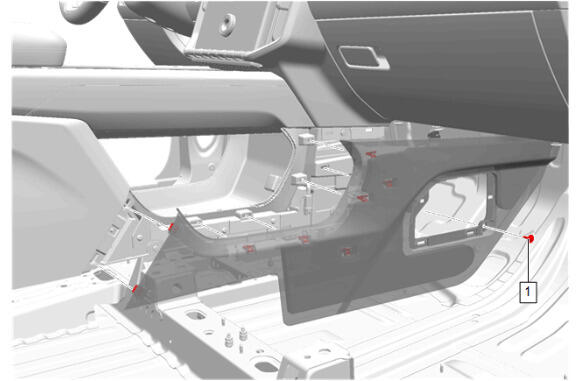

GM6478711Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Extension Panel - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt - - 2.5 N.m (22 lb in) Front Floor Console Extension Panel Replacement - Right Side

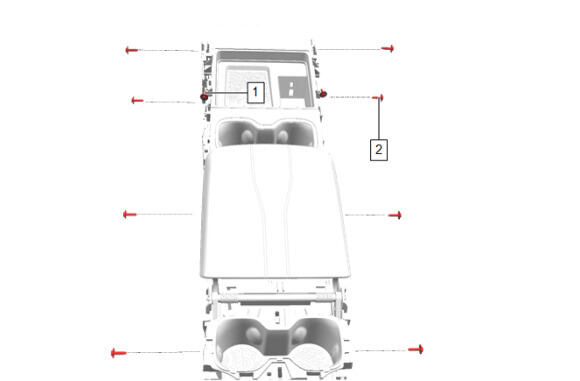

GM6479681Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Extension Panel Bolt [2x] - - 2.5 N.m (22 lb in) Front Floor Console Removal and Installation
2 Front Floor Console Bolt [8x] - - 9 N.m (80 lb in) Front Floor Console Removal and Installation

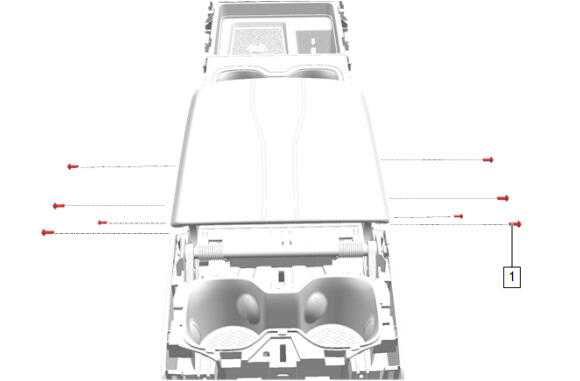

GM6478716Courtesy of GENERAL MOTORS COMPANY
Front Floor Rear Console Side Trim Panel

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Side Trim Panel Bolt [8x] - - 2.5 N.m (22 lb in) Front Floor Rear Console Side Trim Panel Replacement

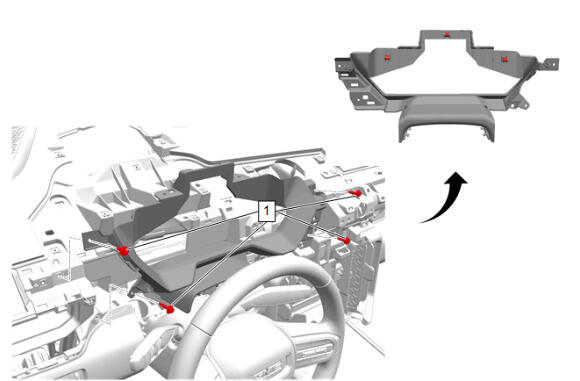

GM6478720Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Cluster Trim Plate

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Cluster Trim Plate Bolt [4x] - - 2.5 N.m (22 lb in) Instrument Panel Cluster Trim Plate Replacement

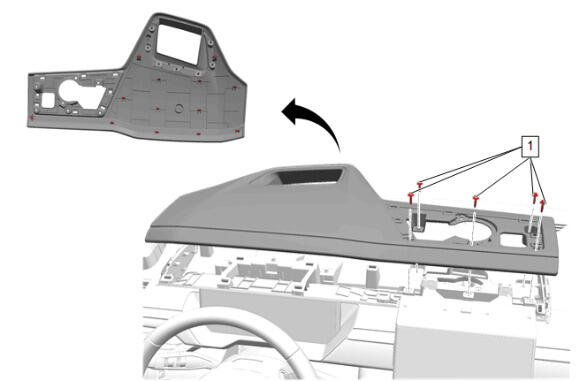

GM6478723Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Instrument Cluster Hood

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Upper Trim Panel Bolt [5x] - - 2.5 N.m (22 lb in) Instrument Panel Instrument Cluster Hood Replacement

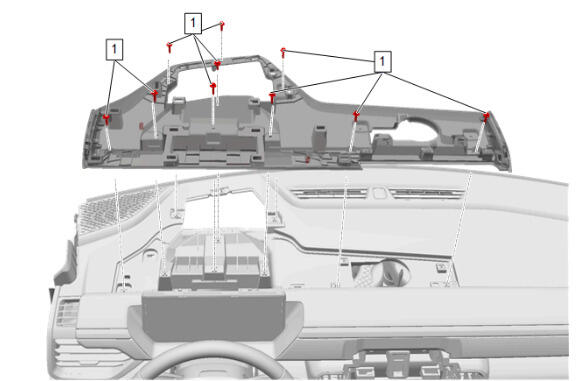

GM6478730Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Upper Trim Panel Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Upper Trim Panel Bracket Bolt [10x] - - 2.5 N.m (22 lb in) Instrument Panel Upper Trim Panel Bracket Replacement

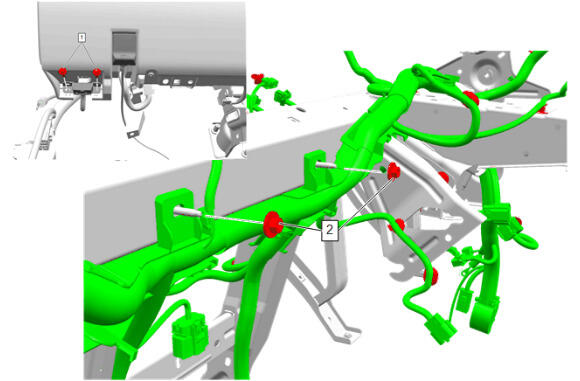

GM6479673Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt [2x] - - 2.5 N.m (22 lb in) Instrument Panel Knee Bolster Replacement
2 Instrument Panel Wiring Harness Bracket Nut [2x] - - 9 N.m (80 lb in) Instrument Panel Wiring Harness Replacement
