Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Low Frequency Body Side Antenna (2) - Install
Rear Side Door Outside Handle Cover (1) - Install
Ensure that the retaining tabs are fully secured.
Courtesy of GENERAL MOTORS COMPANY

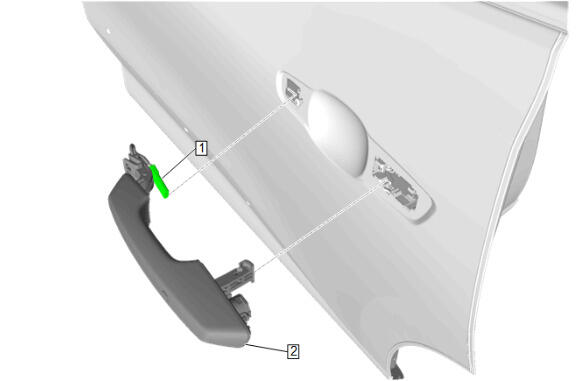

Rear Side Door Outside Handle (2) - Install
Connect the electrical connector (1)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

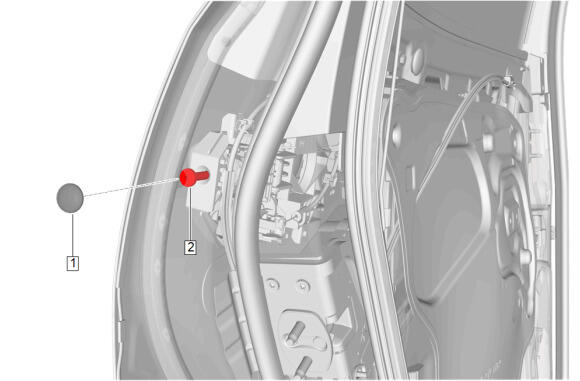

Rear Side Door Outside Handle Bracket Screw (2) - Install and tighten - Fastener Specifications
Rear Side Door Outside Handle Access Hole Plug (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:

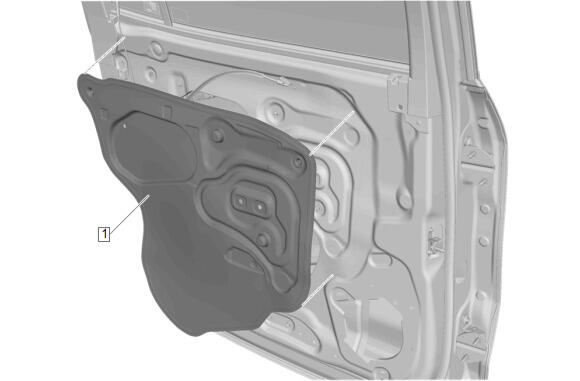

When reinstalling the rear side door water deflector (1) ensure that the integral locators are installed properly and that the rear side door water deflector (1) is secured and leakproof.

Route the rear side door inside handle cable through the hole in rear side door water deflector (1) while installing it to the door.
Rear Side Door Water Deflector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

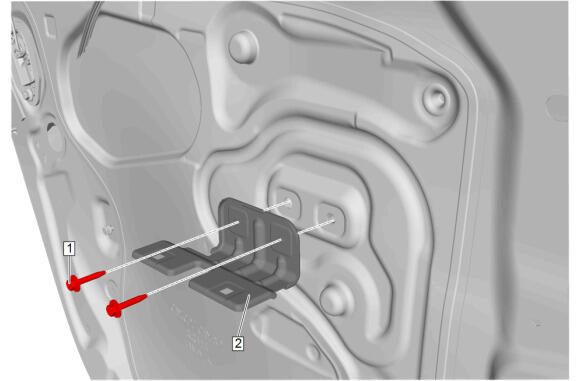

Rear Side Door Armrest Pull Cup Bracket (2) - Install
Rear Side Door Armrest Pull Cup Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
