Removal Procedure
- Disable the SIR system. SIR Disabling and Enabling
- Adjust the rear seat to a suitable position to make sure there is enough space to remove the rear side door sill garnish molding.
Use the appropriate plastic trim tool to release the retaining clips of the rear side door sill garnish molding.
- Rear Side Door Sill Garnish Molding (1) - Remove

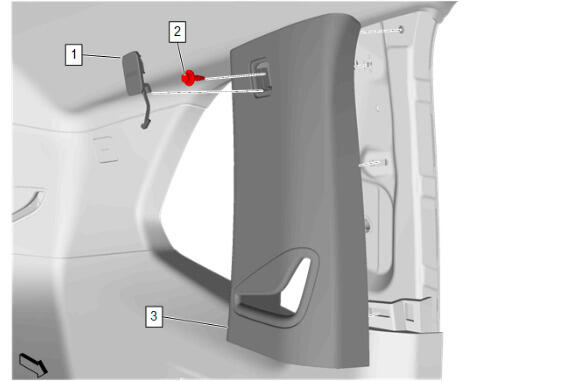

Body Lock Pillar Upper Trim Panel Bolt Hole Plug (1) - Remove
- Quarter Window Trim Finish Panel Bolt (2) - Remove
- Quarter Upper Trim Panel (3) - Reposition
Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
- Body Rear Corner Upper Garnish Molding Bolt (2) - Remove
Body Rear Corner Upper Garnish Molding (1) - Reposition
- Disconnect the electrical connector.
{ If equipped } Rear Wheelhouse Trim Finish Panel Stowage Box (1) - Remove

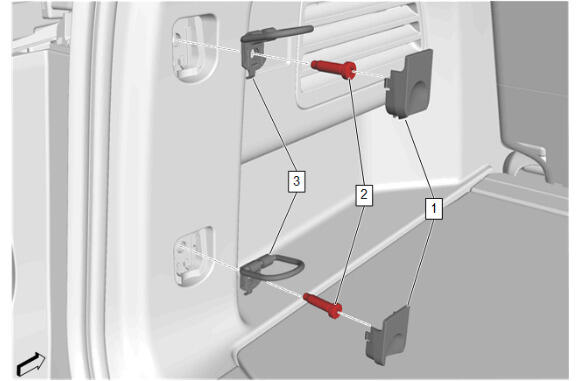

Cargo Tie Down Loop Trim Cover (1) - Remove [2x]
- Cargo Tie Down Loop Bolt (2) - Remove [2x]
- Cargo Tie Down Loop (3) - Remove [2x]

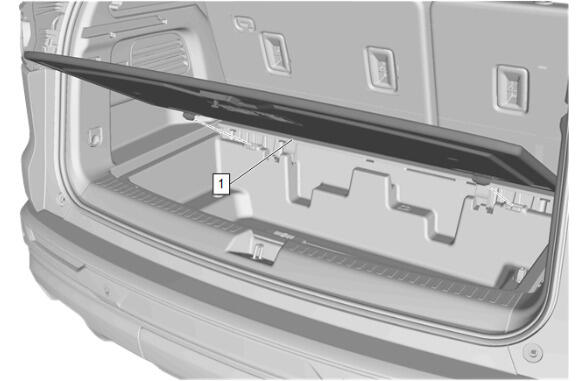

Rotate the load floor trim panel (1) to a proper angle.
- Load Floor Trim Panel (1) - Remove

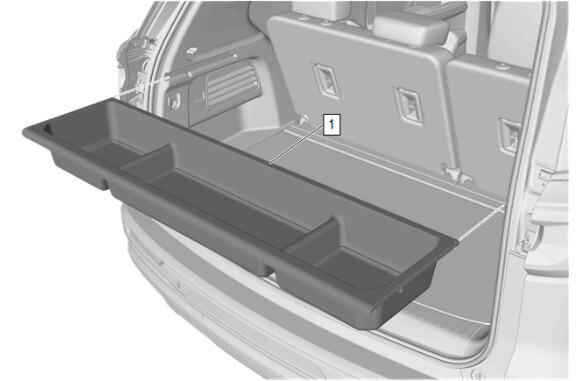

Rear Compartment Floor Panel Front Trim (1) - Remove

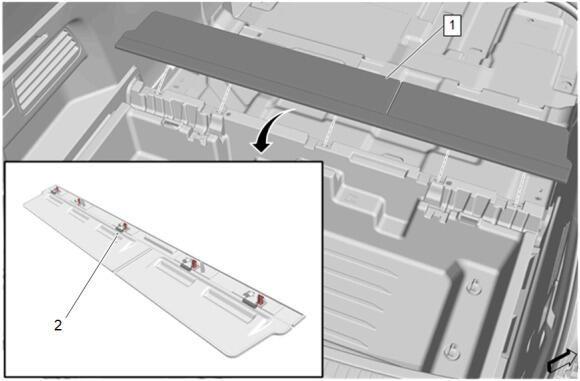

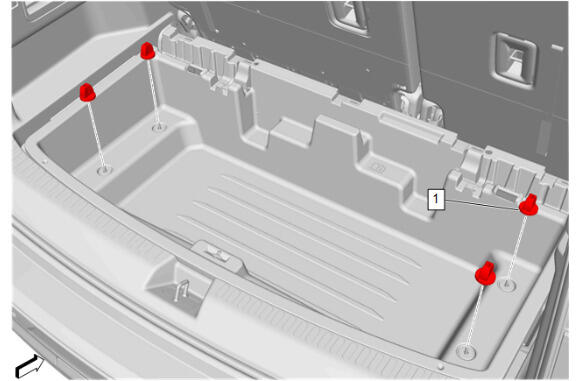

Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Remove [4x]

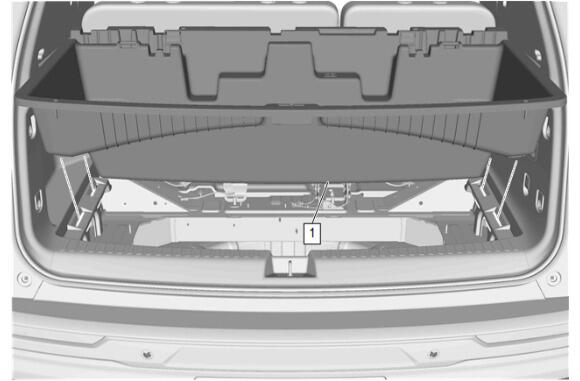

Rear Compartment Floor Stowage Compartment Divider (1) - Remove

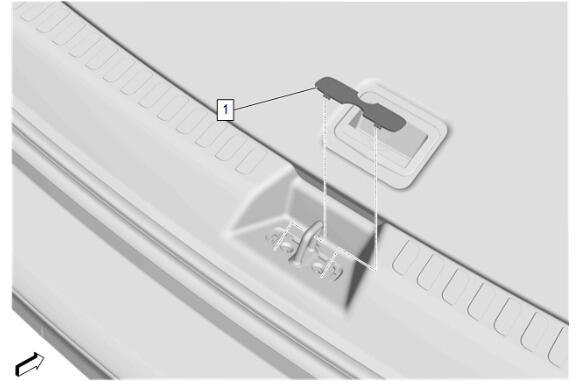

Liftgate Lock Striker Cover (1) - Remove

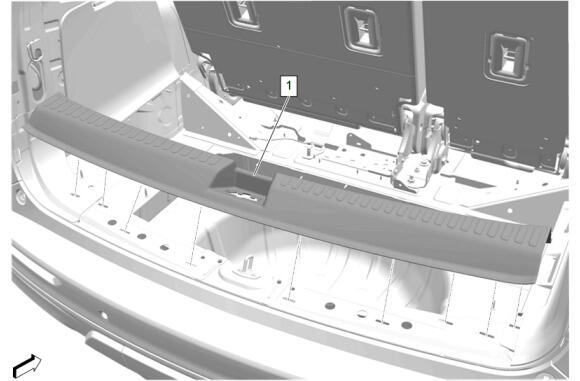

Rear End Trim Finish Panel (1) - Remove

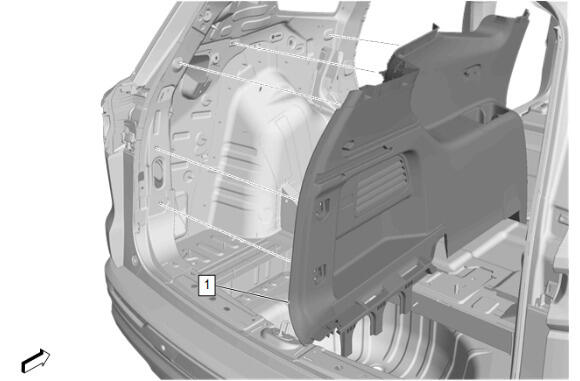

Quarter Lower Rear Trim Panel- Left Side (1) - Remove
- Disconnect the electrical connector.
Disconnect the electrical connector. (1)
- Image Processing Module Nut (2) - Remove [3x]
- Image Processing Module (3) - Remove
