Power Transfer Unit Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

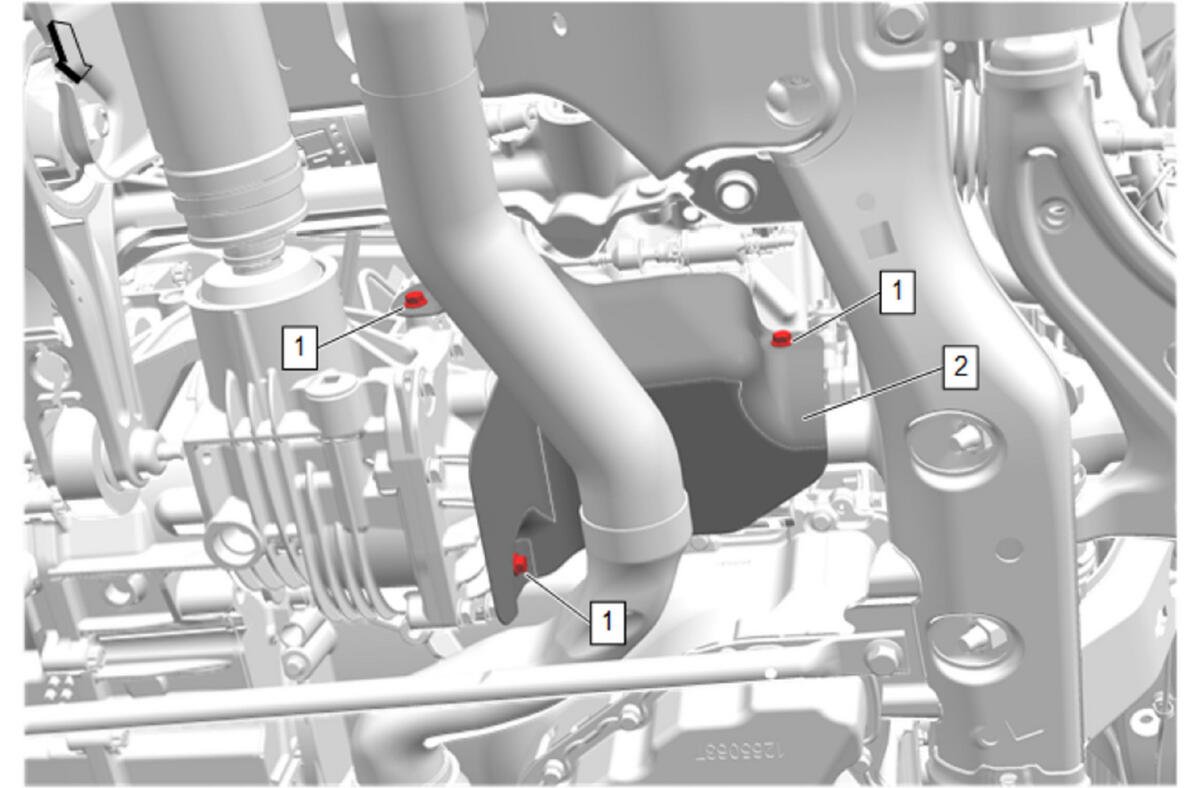

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Remove the front exhaust pipe. Exhaust Front Pipe Replacement
1	Power Transfer Unit Heat Shield Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Power Transfer Unit Heat Shield
