Installation Procedure

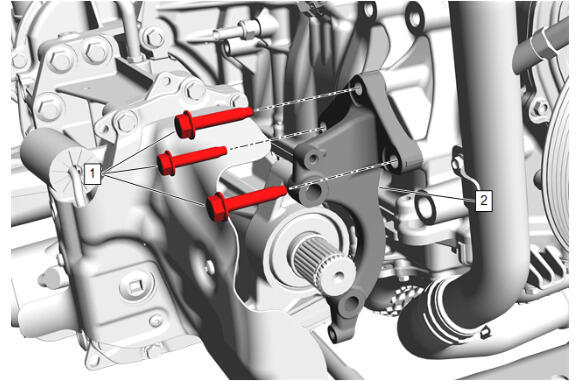

  1. GM5552384Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Bracket (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Transfer Case Bracket Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

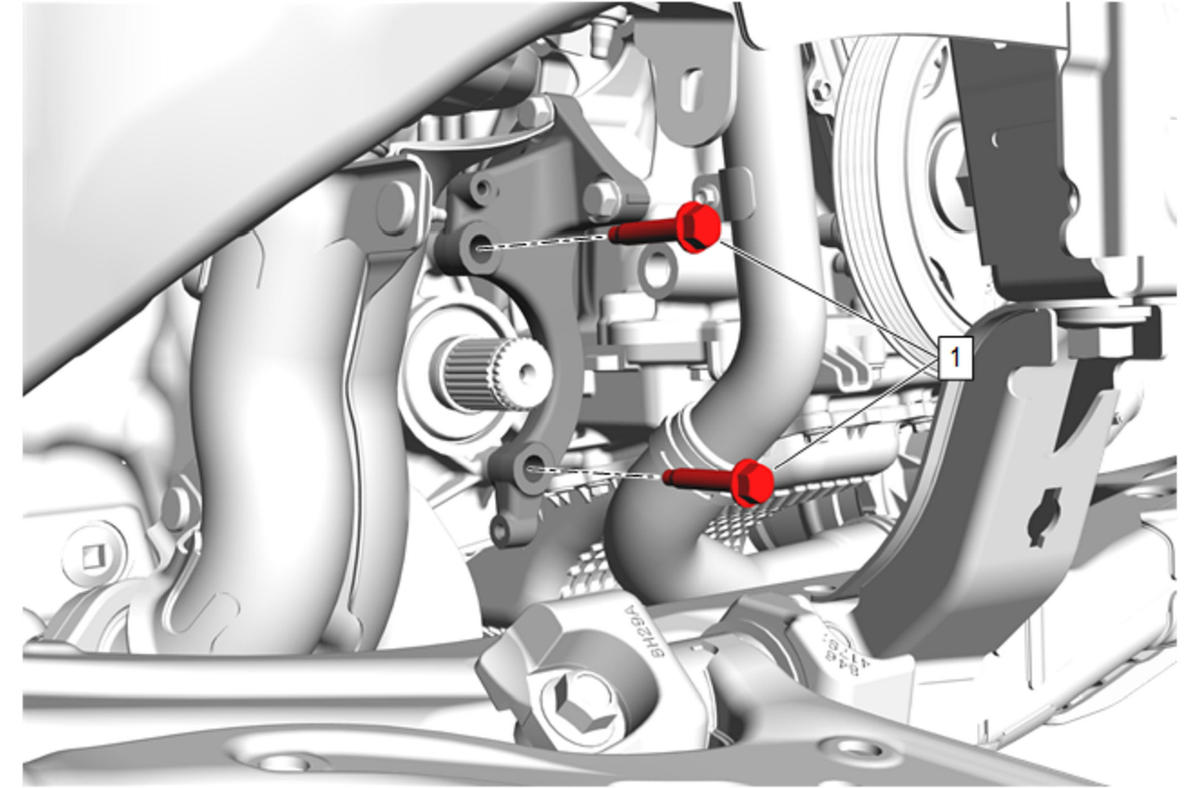

  3. GM5552382Courtesy of GENERAL MOTORS COMPANY

    Transfer Case Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

  4. Front Wheel Drive Half Shaft-Right Side@Vehicle - Install - Front Wheel Drive Half Shaft Replacement - Right Side (AWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (M3U, MHG, MNH, MNK with FWD) , or Front Wheel Drive Half Shaft Replacement - Right Side (M3D, M3H with FWD)
  5. Lower the vehicle.
