Rear Side Door Window Frame Front Applique Replacement

Courtesy of GENERAL MOTORS COMPANY

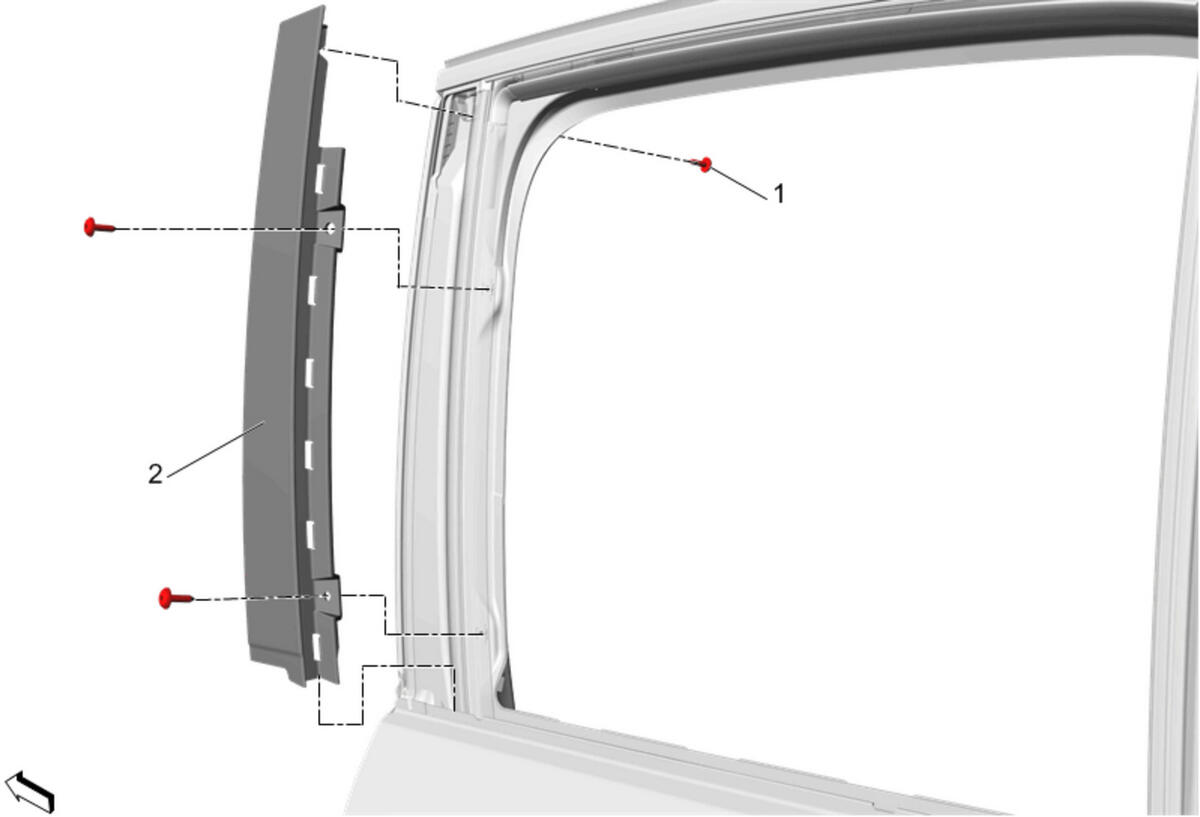

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Rear Side Door Window Belt Reveal Molding Replacement (Equinox) , or Rear Side Door Window Belt Reveal Molding Replacement (Terrain) Rear Side Door Window Inner Sealing Strip Replacement (Equinox) , or Rear Side Door Window Inner Sealing Strip Replacement (Terrain) It is not necessary to completely remove the weatherstrip. Reposition the upper front edge of the rear side door weatherstrip. Rear Side Door Window Weatherstrip Replacement (Equinox) , or Rear Side Door Window Weatherstrip Replacement (Terrain)
1	Rear Side Door Window Frame Applique Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Rear Side Door Window Frame Front Applique Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and install the rear applique to the vehicle.

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Frame Applique Screw [3x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Rear Side Door Window Frame Front Applique

Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
Peel the protective film from the foam tape and install the rear applique to the vehicle.
