Installation Procedure

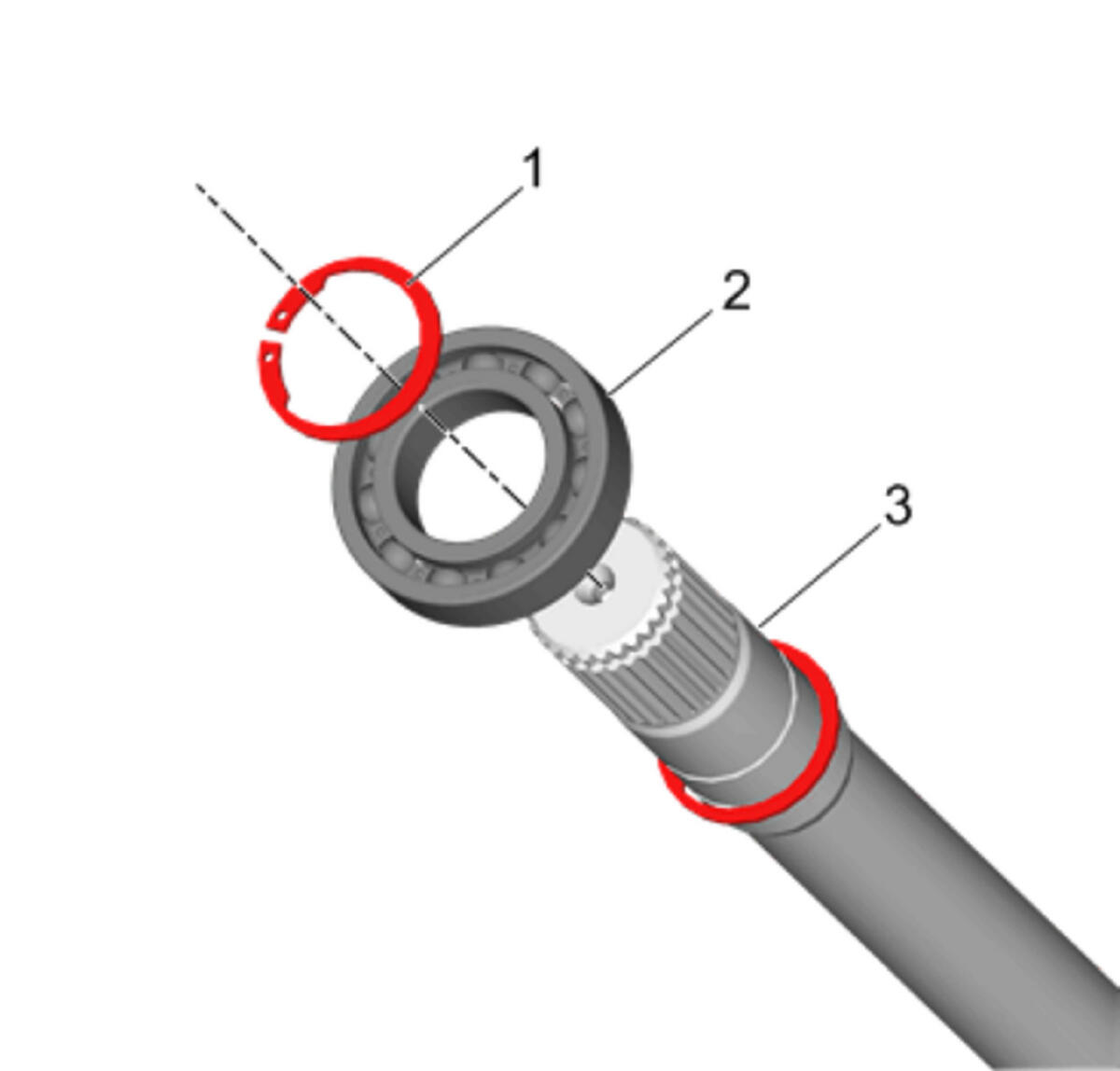

  1. GM3958700Courtesy of GENERAL MOTORS COMPANY

    Using a press, install the intermediate drive shaft bearing (2) to the intermediate drive shaft. Refer to power transfer unit intermediate drive shaft in Power Transfer Unit Case Assemble .

  2. Intermediate Drive Shaft Replacement  - Install
