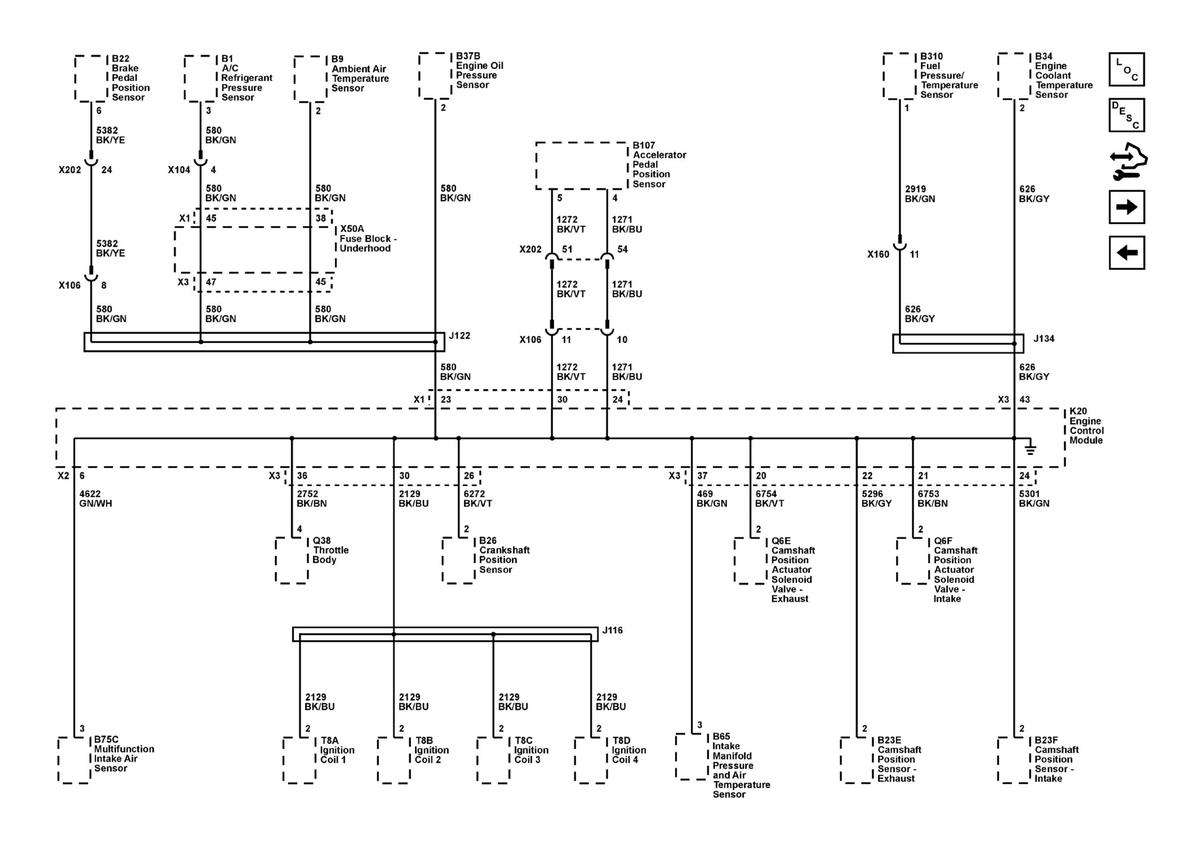

Home >> GMC >> 2023 >> Terrain Denali >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 1.5L (LSD) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Low Reference Bus
