Installation Procedure

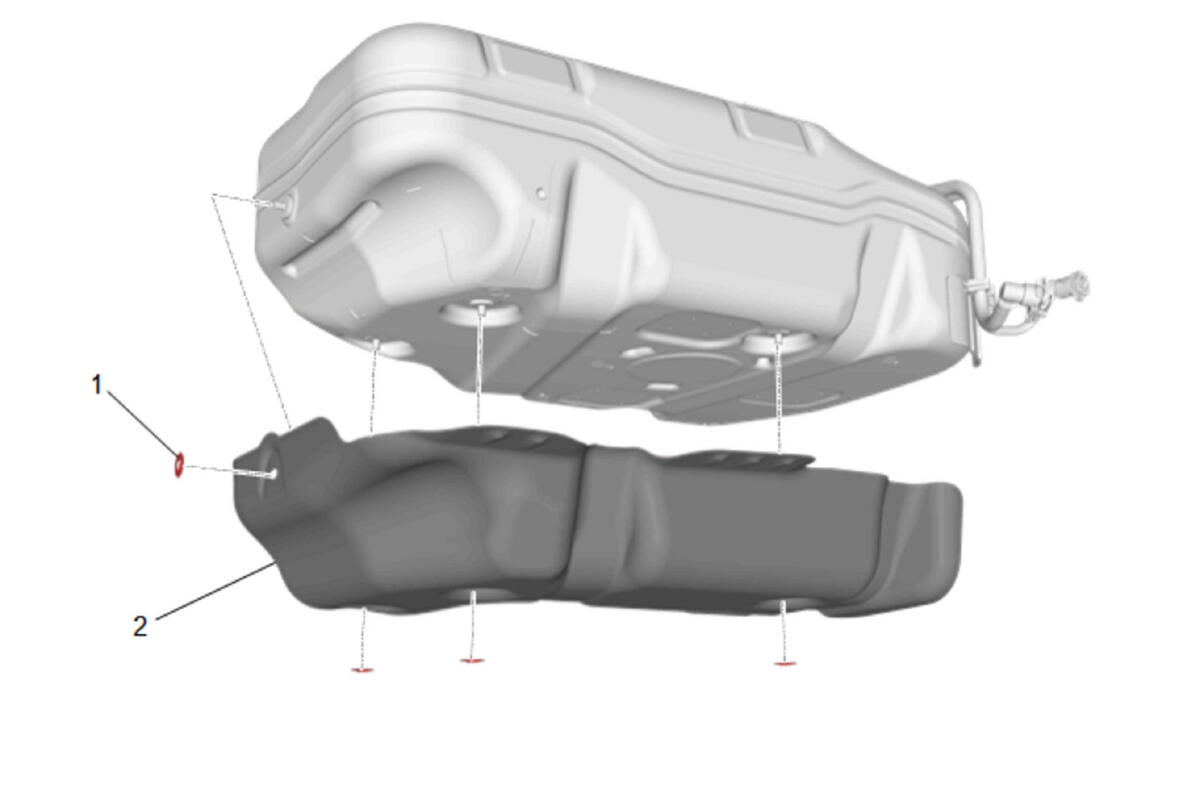

  1. GM6075043Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield (2) - Install

  2. Fuel Tank Shield Retainer (1) - Install [4x]
  3. Fuel Tank - Install - Fuel Tank Replacement (FWD)
