Removal Procedure

  1. Relieve the fuel system pressure. Fuel Pressure Relief

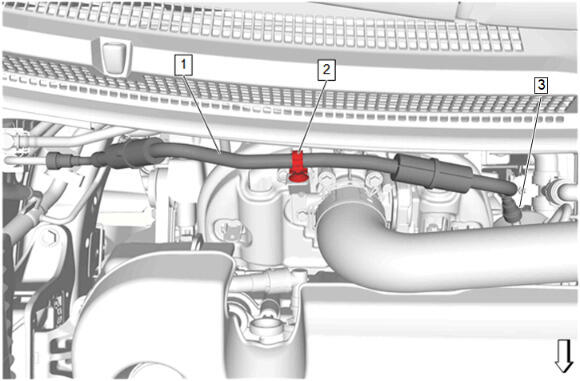

  2. GM6084425Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Pipe (1) - Disconnect [2x] - Metal Collar Quick Connect Fitting Service

  3. Fuel Feed Front Pipe (1) @Fuel Feed Evaporative Emission Separator Pipe Clip (2) - Disengage
  4. Fuel Feed Front Pipe (1) - Remove
