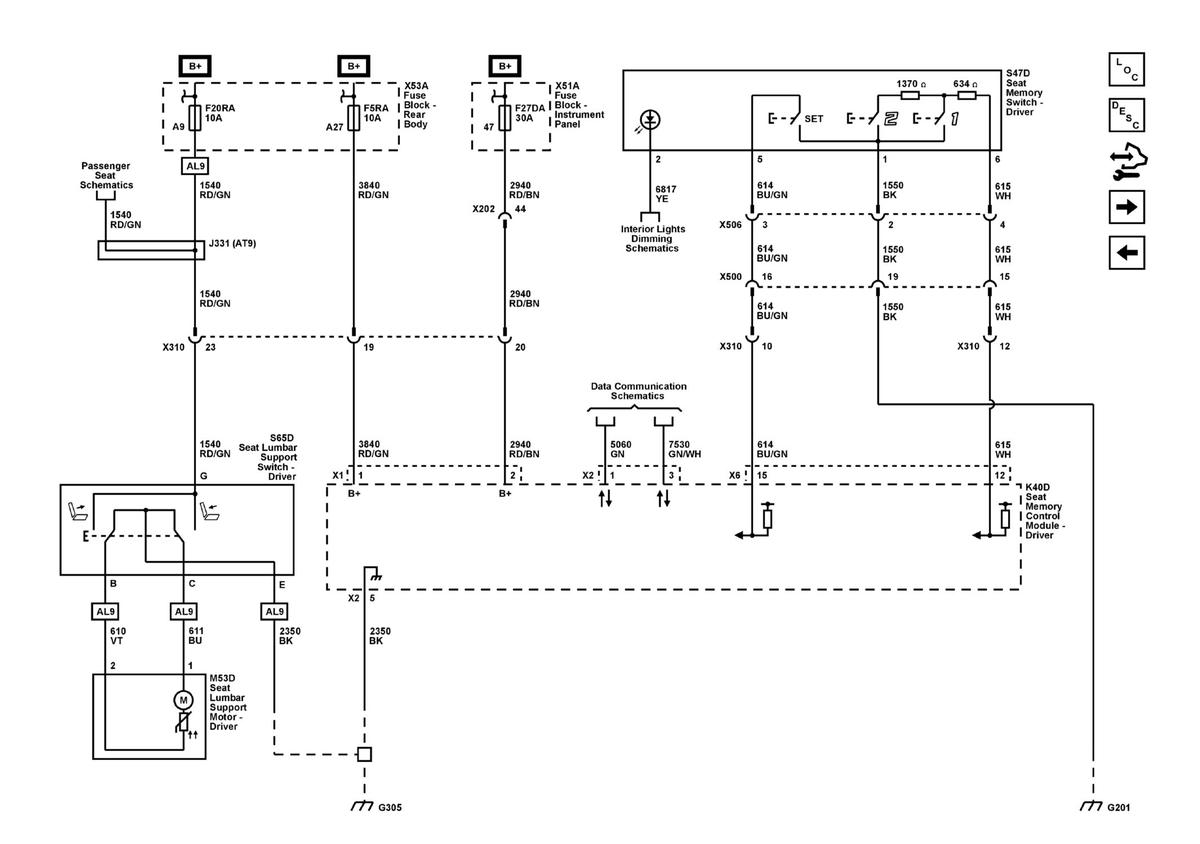

Module Power, Ground, Serial Data, and Memory Controls (A45)

GM6042171

Courtesy of GENERAL MOTORS COMPANY
