Front Seat Lumbar Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

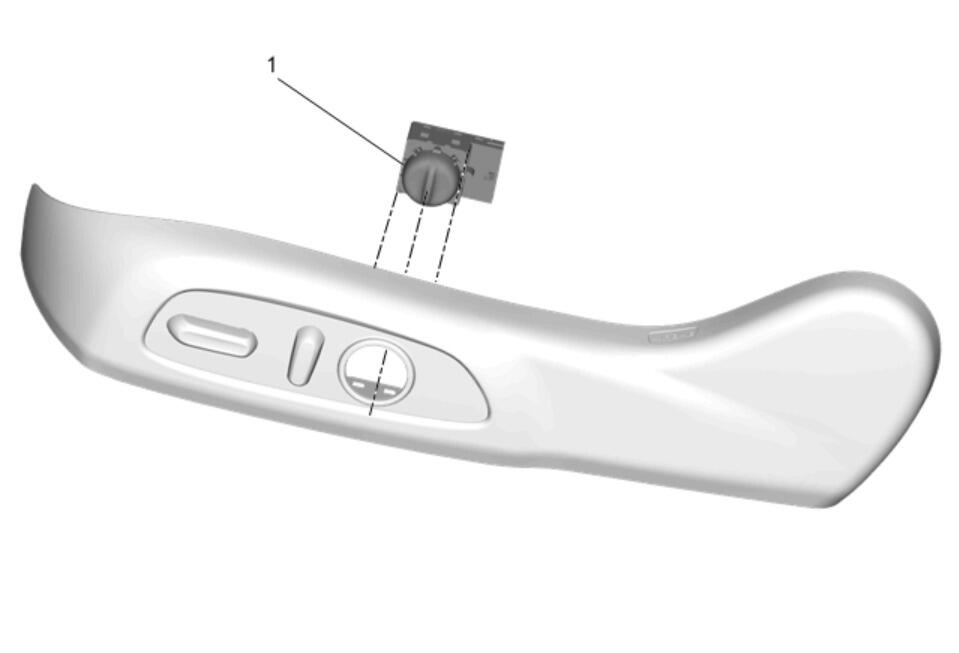

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Seat Cushion Outer Finish Cover Replacement (Manual) , or Front Seat Cushion Outer Finish Cover Replacement (Power) , or Front Seat Cushion Outer Finish Cover Replacement (Terrain Passenger Side)
1	Driver or Passenger Seat Lumbar Control Switch Procedure  Disconnect the electrical connector.
