Installation Procedure

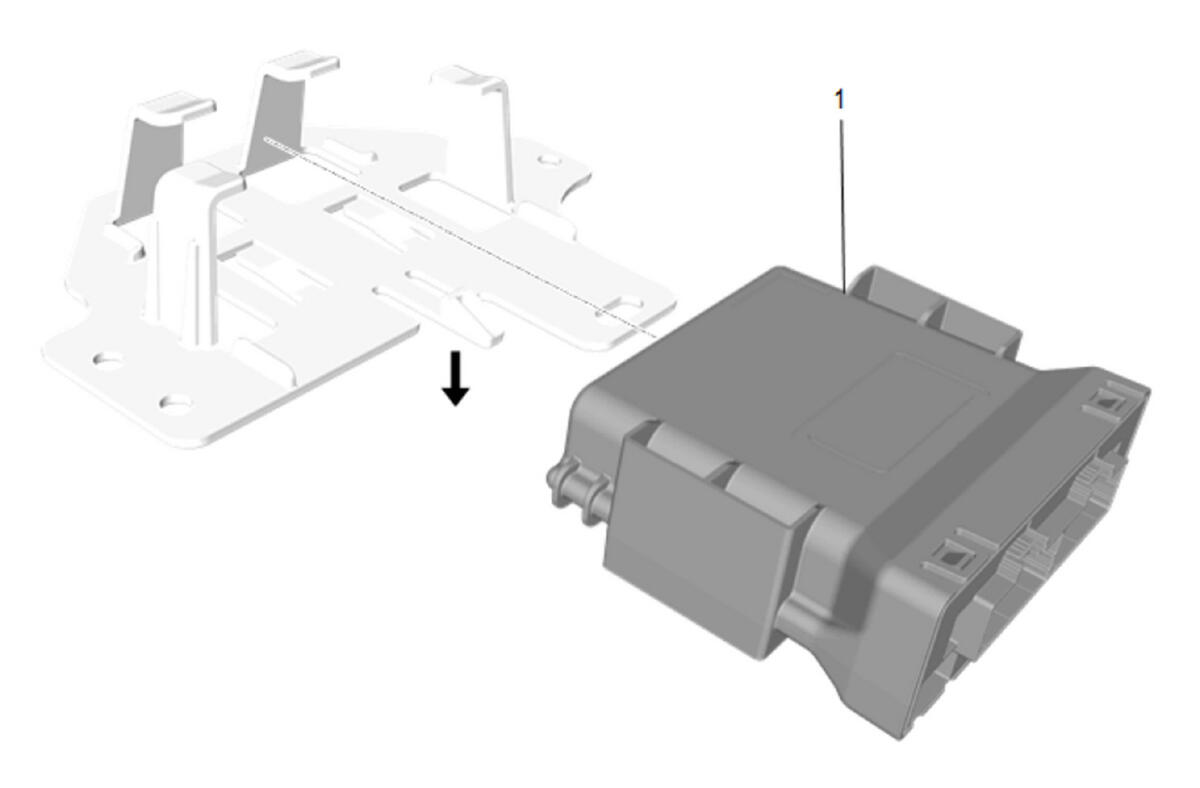

Serial Data Gateway Module (1) - Install
Connect the electrical connectors.

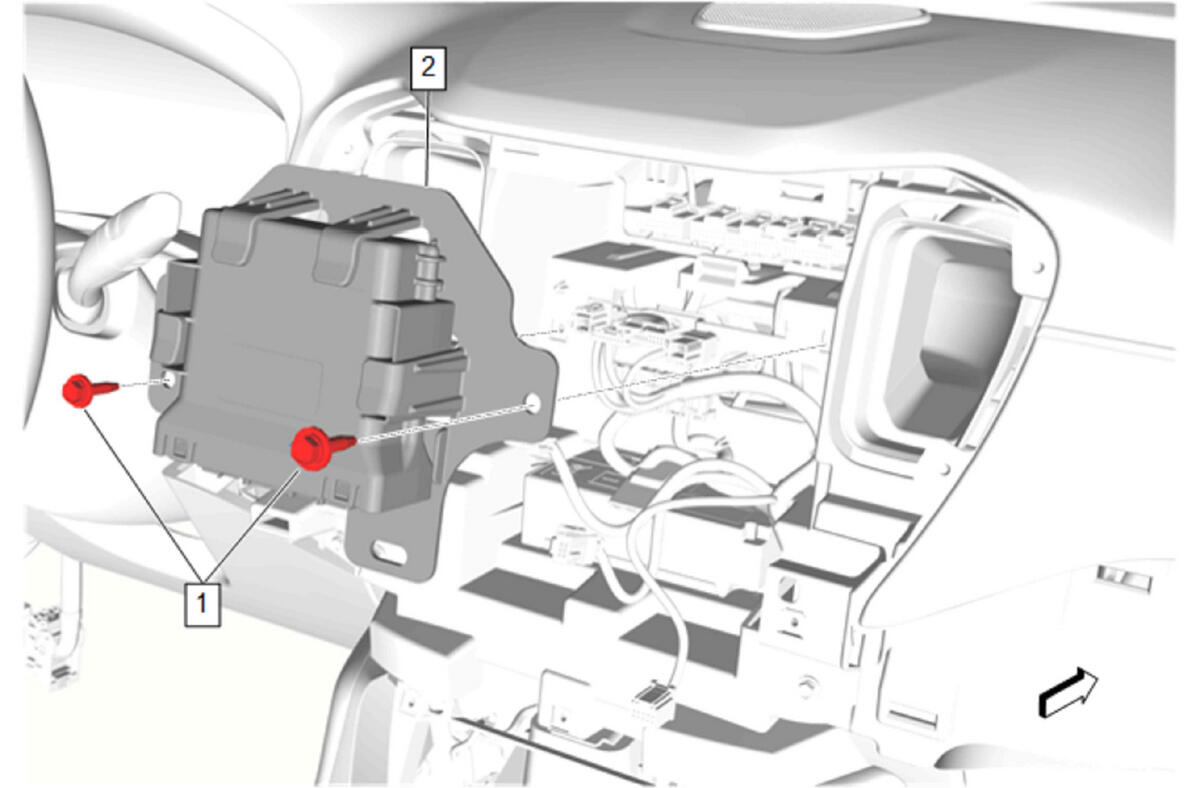

- Serial Data Gateway Bracket (2) - Install
- Serial Data Gateway Module Bracket Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)
Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Terrain)
Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Terrain)
Install the left and right instrument panel center trim plate applique (1, 2). Instrument Panel Center Trim Plate Applique Replacement (Terrain)
CAUTION:
Refer to Fastener Caution .
