Instrument Panel and Shift Lever

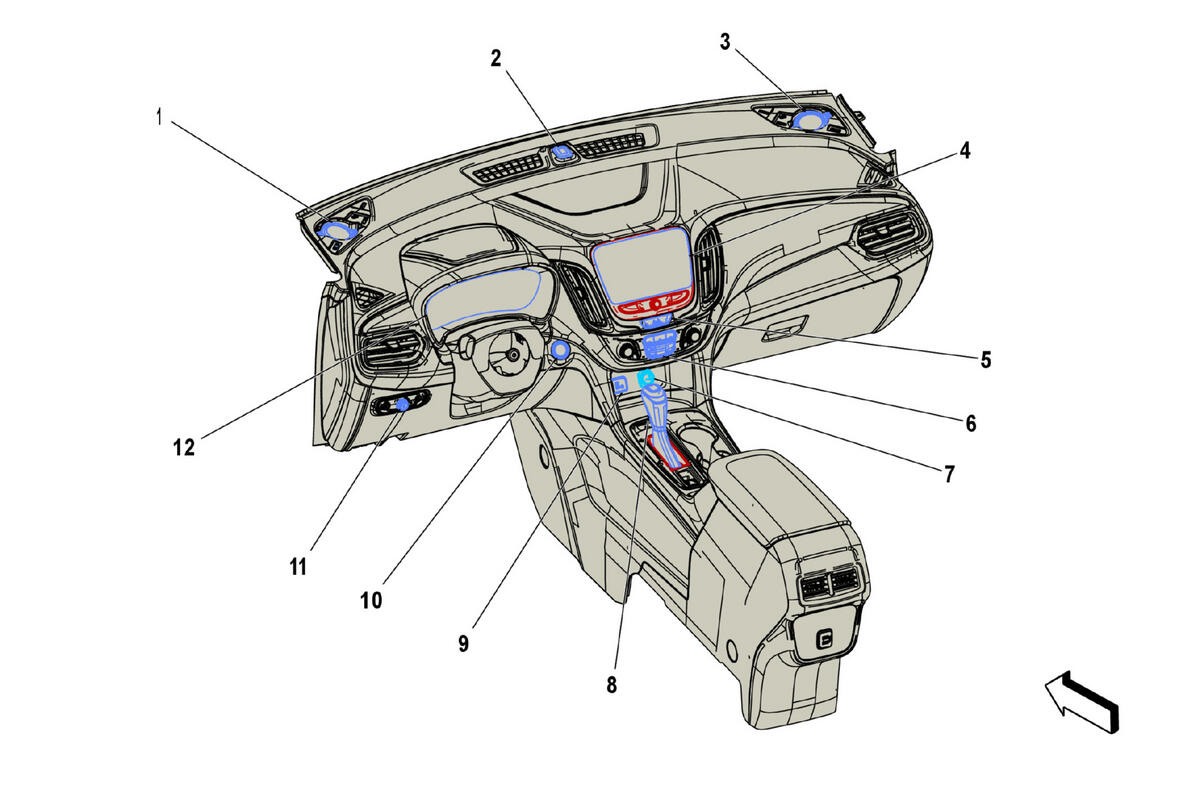

GM6142070Courtesy of GENERAL MOTORS COMPANY
Items
1. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel ((IOS/IOU/+UQA)P19J Speaker - Left Instrument Panel (IOR+UZ6)P19J Speaker - Left Instrument Panel (UZ6-IOR)
2. B10B Ambient Light/Sunload Sensor (UE1/-UE1) B10B Ambient Light/Sunload Sensor (-UE1)B10B Ambient Light/Sunload Sensor (UE1)
3. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (IOR+UZ6)P19W Speaker - Right Instrument Panel (UQA+(IOS/IOU))P19W Speaker - Right Instrument Panel (UZ6-IOR)
4. P17 Info Display Module (EPH/IOR) P17 Info Display Module X1 (-EPH)P17 Info Display Module X1 (EPH)P17 Info Display Module X1 (IOR)P17 Info Display Module X2
5. S26 Hazard Warning Switch S26 Hazard Warning Switch
6. A26 HVAC Controls A26 HVAC Controls
7. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
8. S3 Transmission Shift Lever S3 Transmission Shift Lever
9. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (IOR)X83 Auxiliary Audio Input X1 (MCR)X83 Auxiliary Audio Input X2 (-EPH)X83 Auxiliary Audio Input X2 (EPH)
10. S38 Ignition Mode Switch S38 Ignition Mode Switch
11. S30 Headlamp Switch S30 Headlamp Switch
12. P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X3
