Installation Procedure

  1. GM5918807Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Front Gasket (3) - Install NEW

  2. Exhaust Front Pipe (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Catalytic Converter Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)

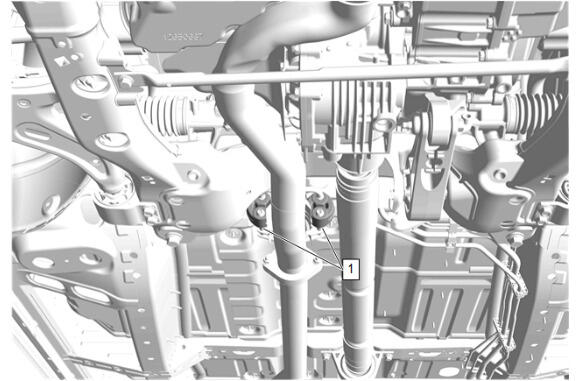

  4. GM6174072Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Insulator (1) - Install [2x]

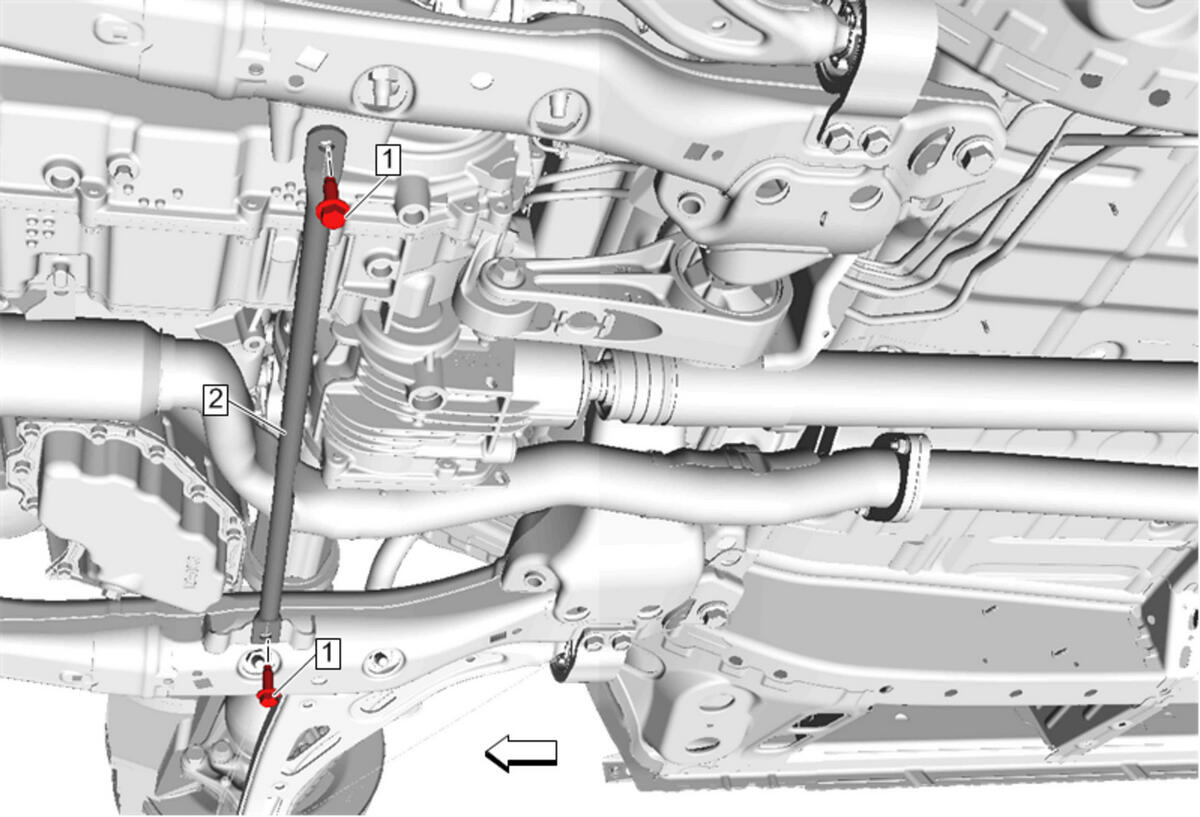

  5. GM4585527Courtesy of GENERAL MOTORS COMPANY

    Front Cradle Brace (2) - Install - Front Cradle Brace Replacement

  6. GM5918791Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Intermediate Gasket (2) - Install NEW

  7. Exhaust Muffler Assembly (1) @Exhaust Front Pipe - Install
  8. GM4587121Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut (1) - Install and tighten [2x] 25 N.m (18 lb ft)

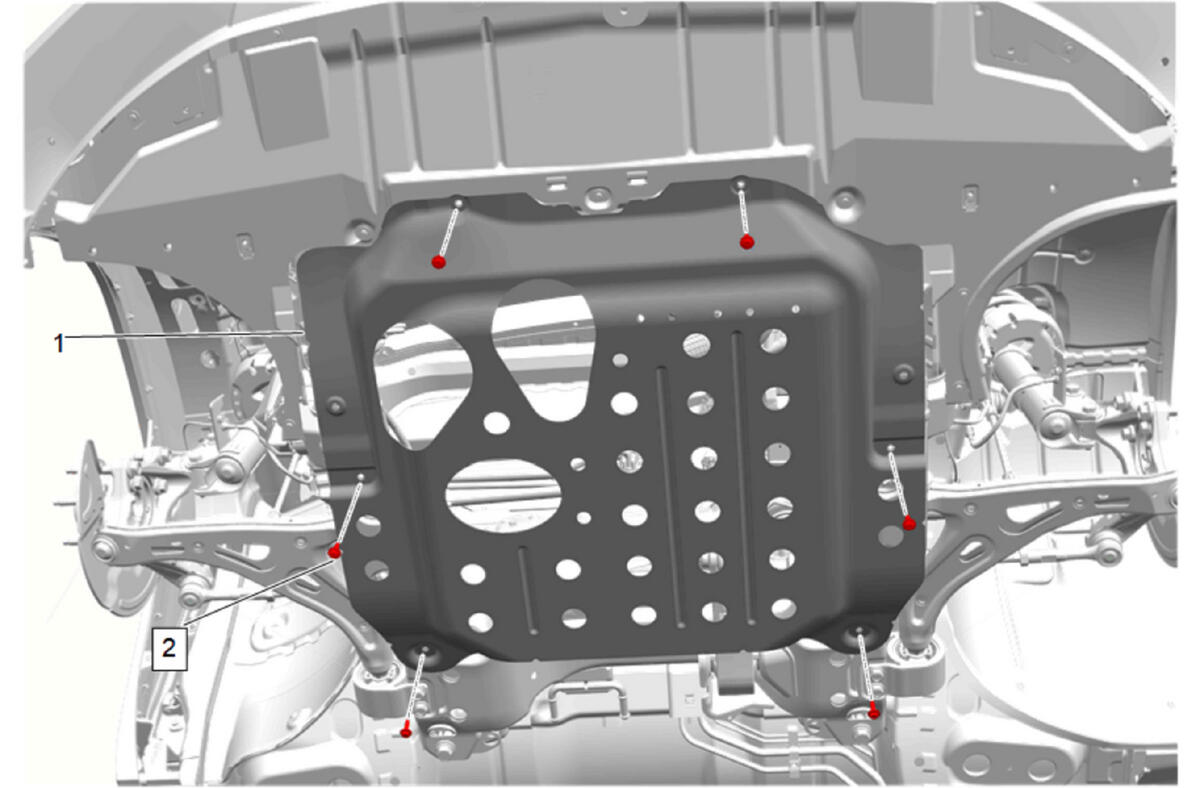

  9. GM5731483Courtesy of GENERAL MOTORS COMPANY

    Underbody Skid Shield (1) - Install - Underbody Skid Shield Replacement

  10. Inspect the exhaust system for leaks.
