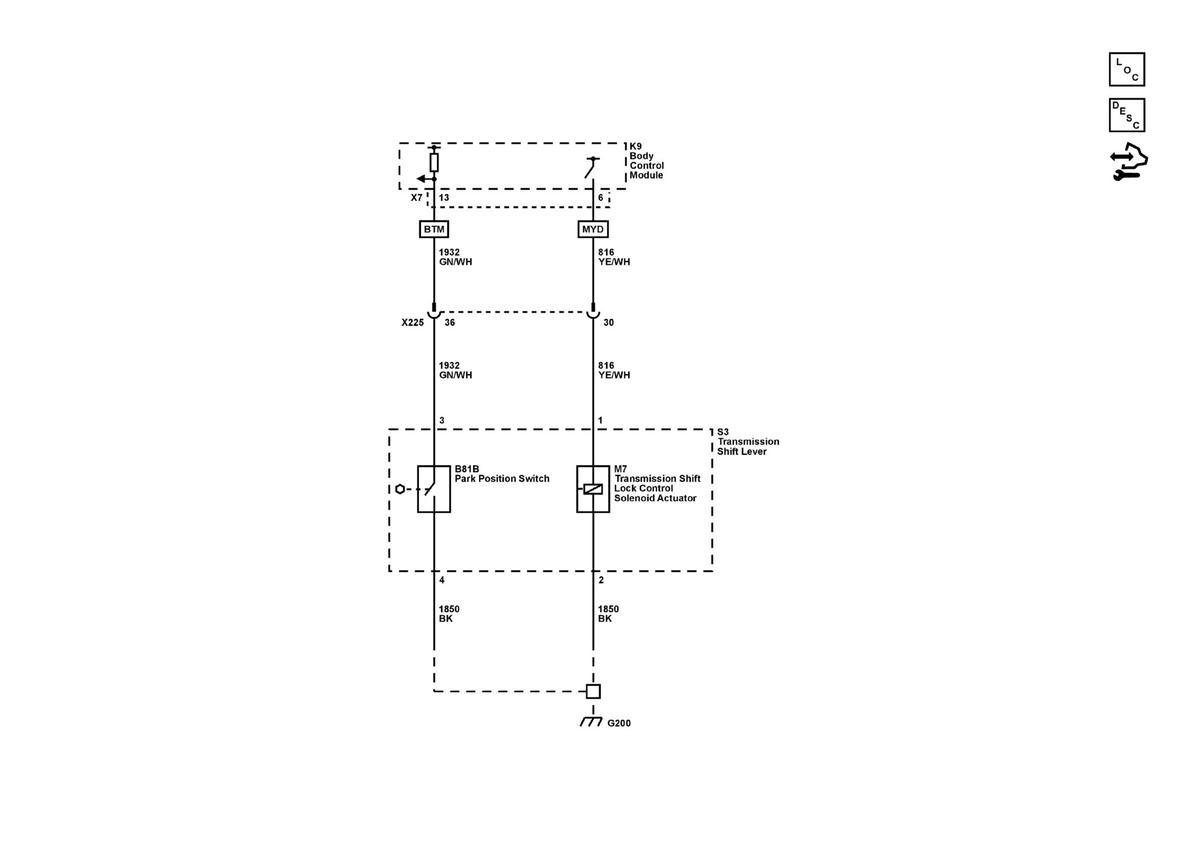

Home >> GMC >> 2023 >> Sierra 2500 HD AT4, 6.6L Eng VIN 7 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock Control
