Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

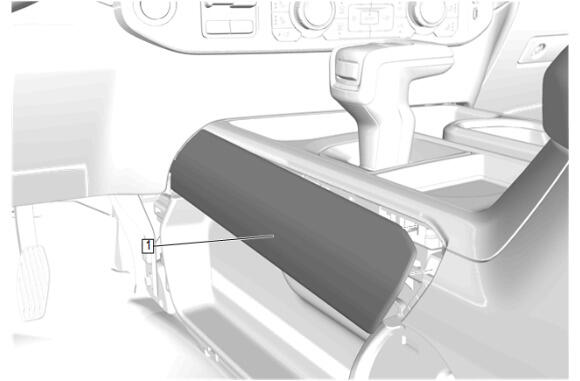

Using a flat-bladed plastic trim tool, release the retaining clips.
Instrument Panel Knee Bolster (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Starting from the rear, use a plastic trim tool to release the retainers securing the front floor console applique (1) on both sides of the front floor console.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Pull the front floor console applique (1) rearward to clear the integral tabs out on both sides of the instrument panel lower trim panel.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Open the instrument panel compartment door for better access the retaining clips.

Instrument Panel Lower Trim Panel Bolt (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
Instrument Panel Lower Trim Panel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Using a flat-bladed plastic trim tool, release the retaining clips.
Reposition the component to access the electrical connector.
Disconnect the electrical connector.
Front Floor Console Cup Holder Trim Plate (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Wiring Harness Clip (1) - Remove
Automatic Transmission Control Bolt (2) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Gear Shift Control Module (1) - Reposition
Electrical Connector (2) - Disconnect
Gear Shift Control Module (1) - Remove
