Fastener Specifications
NOTE:
Callouts items in the following chart represent components shown in graphic above.
Inside Rearview Mirror
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Inside Rearview Mirror Bolt | - | - | 1.8 N.m (16 lb in) | Inside Rearview Mirror Replacement |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

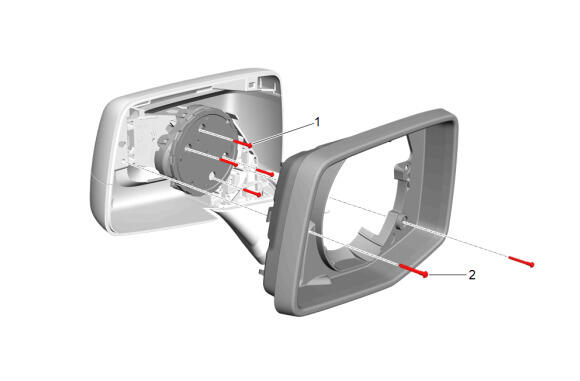

Outside Rearview Mirror Components with DEZ, DEN, or DLF
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt [4x] | - | - | 2 N.m (18 lb in) | Outside Rearview Mirror Actuator Replacement (DEZ, DEN, DLF) |
| 2 | Outside Rearview Mirror Housing Bezel Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Outside Rearview Mirror Housing Bezel Replacement (DEZ, DEN, DLF) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

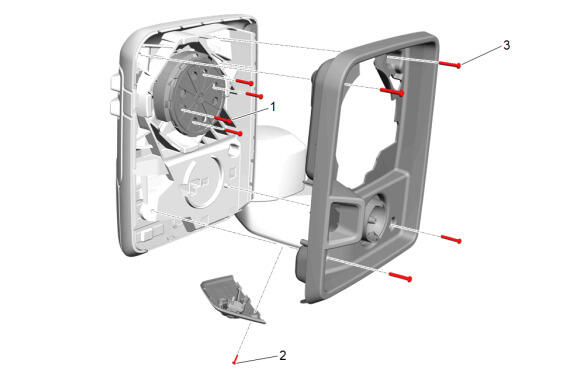

Outside Rearview Mirror Components with DPO or DQS
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Actuator Bolt [4x] | - | - | 2 N.m (18 lb in) | Outside Rearview Mirror Actuator Replacement (DPO, DQS) |
| 2 | Outside Rearview Mirror Bracket Cover Bolt | - | - | 1.5 N.m (13 lb in) | Outside Rearview Mirror Bracket Cover Replacement |
| 3 | Outside Rearview Mirror Housing Bezel Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Outside Rearview Mirror Housing Bezel Replacement (DPO, DQS) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

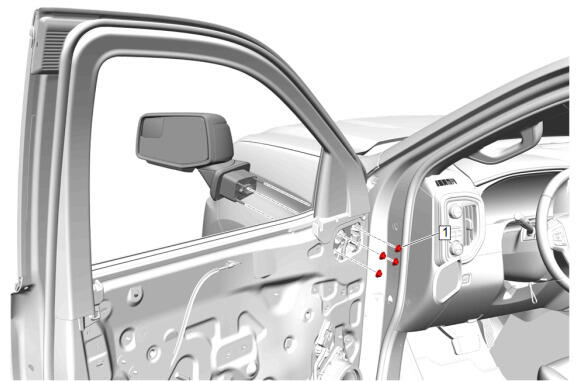

Outside Rearview Mirror Mounting with DEZ, DEN, or DLF
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [4x] | - | - | 22 N.m (16 lb ft) | Outside Rearview Mirror Replacement (DEN, DLF, or DEZ without UV2) , or Outside Rearview Mirror Replacement (DEZ with UV2) |
NOTE:
Callouts items in the following chart represent components shown in graphic above.

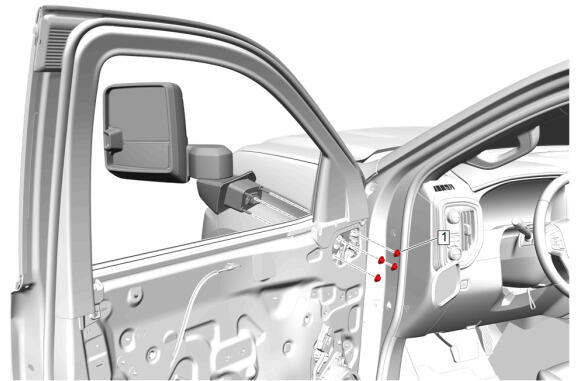

Outside Rearview Mirror Mounting with DPO or DQS
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Nut [4x] | - | - | 22 N.m (16 lb ft) | Outside Rearview Mirror Replacement (DPO) , or Outside Rearview Mirror Replacement (DQS) |
