Fastener Specifications

GM5782436Courtesy of GENERAL MOTORS COMPANY

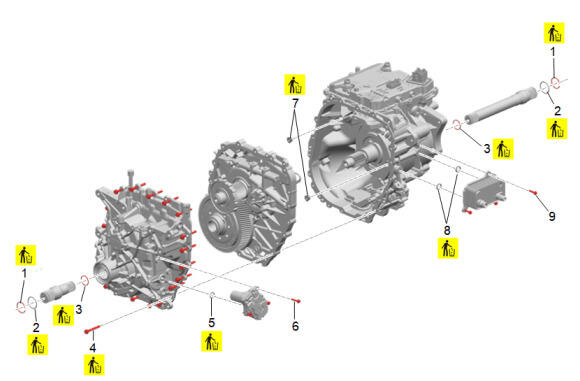

Automatic Transmission Case and Associated Parts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Output Shaft Retaining Ring-Large [2x] Yes - - Front Electric Drive Transmission Module Overhaul
2 Output Shaft Seal [2x] Yes - -
3 Output Shaft Retaining Ring-Small [2x] Yes - -
4 Automatic Transmission Case Bolt-M8 x 67.9 [21x] Yes - Automatic Transmission Case Bolt Sequence
5 Manual Shift Shaft Motor Bolt-M6 x 35.65 [3x] - - 9 N.m (80 lb in)
6 Drive Motor Housing Seal [2x] Yes - -
7 Automatic Transmission Fluid Cooling Exchanger Seal [2x] Yes - -
8 Automatic Transmission Fluid Cooling Exchanger Bolt-M6 x 30.65 [3x] - - 15 N.m (11 lb ft)

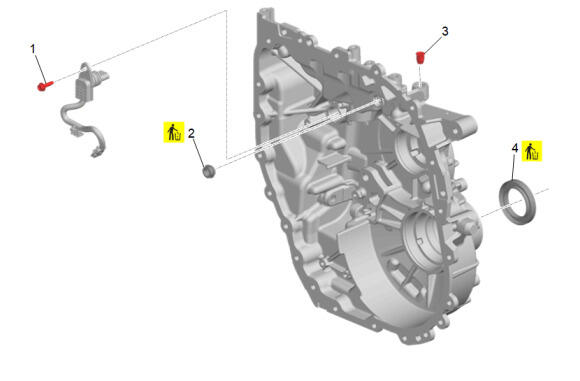

GM5782640Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Wiring Harness Bolt-M6 x 23.15 - - 15 N.m (11 lb ft) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Housing Seal Yes - -
3 Automatic Transmission Fluid Level Hole Plug Yes - 35 N.m (26 lb ft)
4 Front Wheel Drive Shaft Oil Seal Yes - -
GM5782886Courtesy of GENERAL MOTORS COMPANY

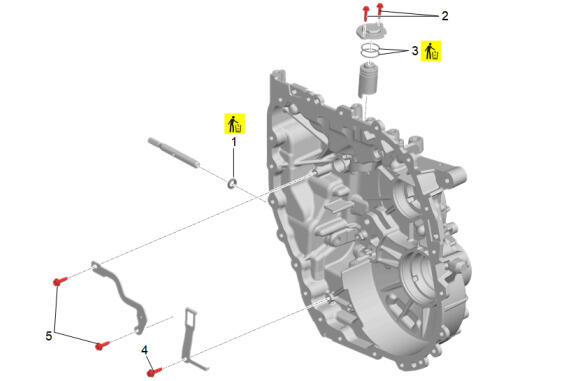

Automatic Transmission Case Park Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Manual Shift Shaft Seal Yes - - Front Electric Drive Transmission Module Overhaul
2 Automatic Transmission Case Cover Bolt-M5 x 22.65 [2x] - - 8.5 N.m (75 lb in)
3 Park Pawl Actuator Guide Seal [2x] Yes - -
4 Manual Shift Detent Spring Bolt-M6 x 25.65 - - 15 N.m (11 lb ft)
5 Parking Pawl Shaft Retainer Bracket Bolt-M6 x 23.15 [2x] - - 15 N.m (11 lb ft)

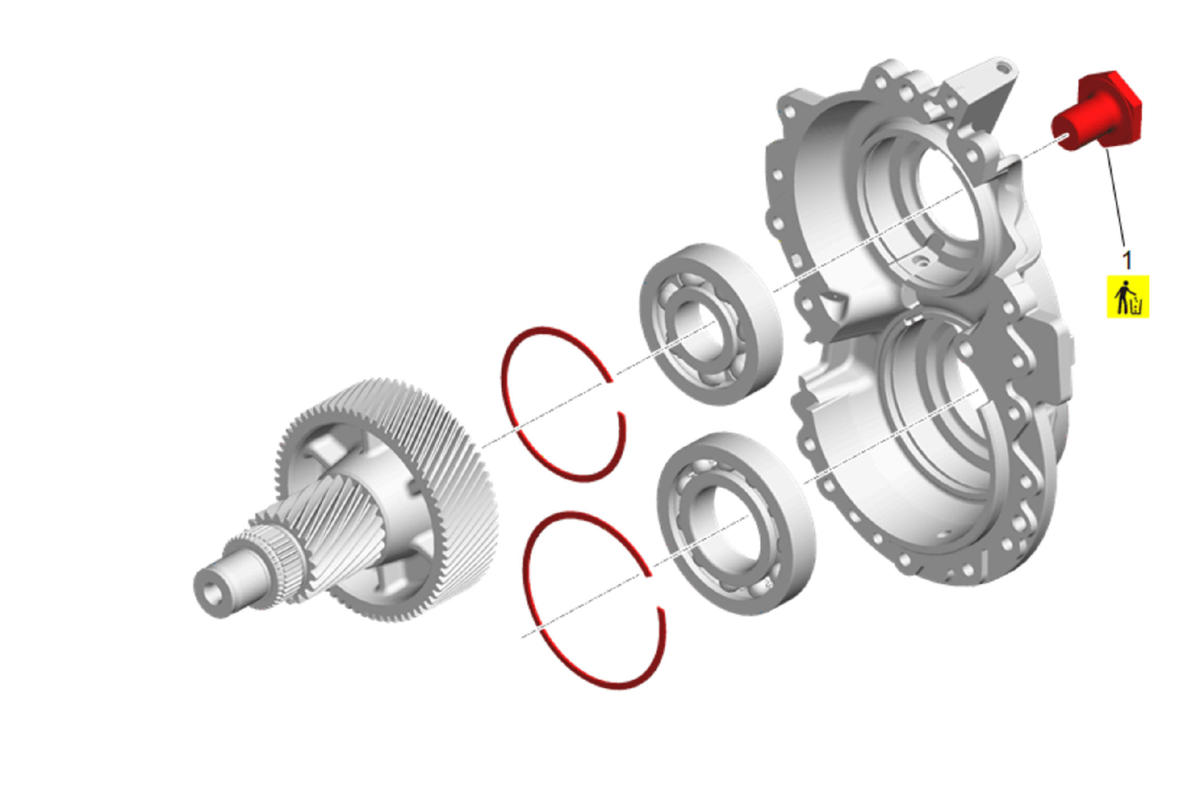

GM5782891Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Final Drive Pinion Gear Bearing Bolt-M25 x 37 Yes Yes 245 N.m (181 lb ft) Front Electric Drive Transmission Module Overhaul

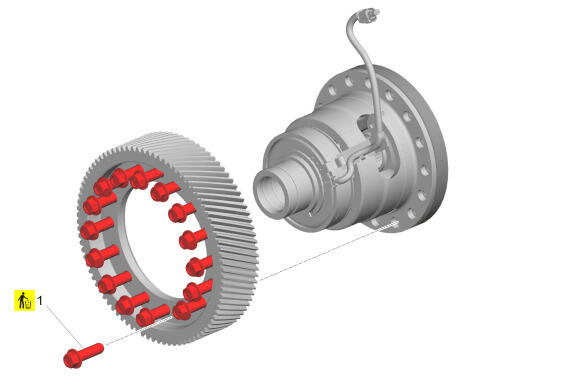

GM5782892Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Differential Carrier Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Final Drive Ring Gear Bolt-M12 x 40 [16x] Yes - Automatic Transmission Differential Final Drive Ring Gear Bolt Sequence  Front Electric Drive Transmission Module Overhaul

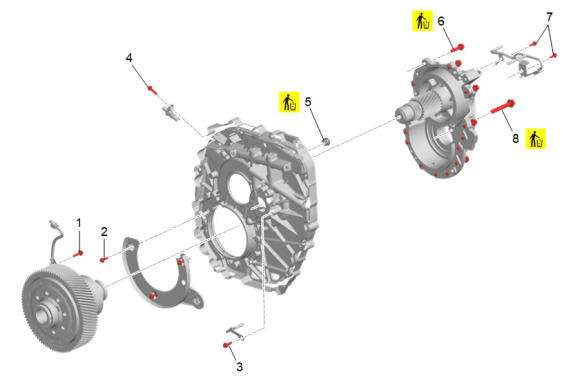

GM5782889Courtesy of GENERAL MOTORS COMPANY
Center Support Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Wiring Harness Bolt-M6 x 25.65 - - 15 N.m (11 lb ft) Front Electric Drive Transmission Module Overhaul
2 Automatic Transmission Differential Carrier Baffle Bolt-M6 x 24.1 [3x] - - 8.5 N.m (75 lb in)
3 Drive Motor Rotor Cooling Tube Bolt-M6 x 23.15 - - 15 N.m (11 lb ft)
4 Automatic Transmission Wiring Harness Bolt-M6 x 25.65 - - 15 N.m (11 lb ft)
5 Drive Motor Housing Seal Yes - -
6 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt-M8 x 35.4 [14x] Yes - Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt Sequence
7 Automatic Transmission Case Cover Bolt-M5 x 17.65 [2x] - - 8.5 N.m (75 lb in)
8 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt-Large-M10 x 70.6 Yes - First Pass: 30 N.m (22 lb ft)
Final Pass: 94 degrees
GM5924446Courtesy of GENERAL MOTORS COMPANY

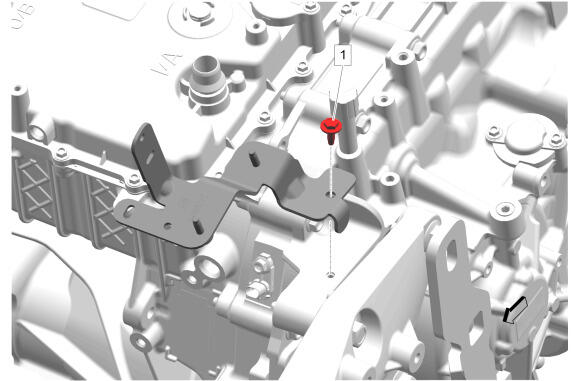

Drive Motor Battery Cooling Blower Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Cooling Blower Bracket Bolt-M6 x 16 - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement

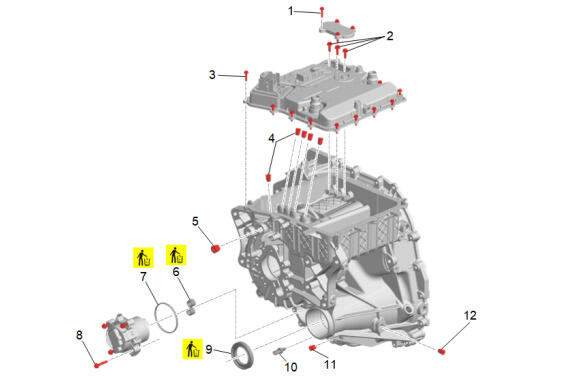

GM5782895Courtesy of GENERAL MOTORS COMPANY
Drive Motor Housing Components 1 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Cover Bolt-M5 x 22.65 [4x] - - 8.5 N.m (75 lb in) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Power Inverter Module Connector Bolt-M6 x 20.65 [3x] - - 9 N.m (80 lb in)
3 Drive Motor Power Inverter Module Bolt-M5 x 22.65 [16x] - - Drive Motor Power Inverter Module Bolt Sequence
4 Drive Motor Housing Plug-Small-M12 x 16.25 [5x] Yes - 35 N.m (26 lb ft)
5 Drive Motor Housing Plug-M18 x 16.25 Yes - 40 N.m (30 lb ft)
6 Automatic Transmission Fluid Pump Motor Cover Seal [2x] Yes - -
7 Automatic Transmission Fluid Pump Motor Cover Seal-Large Yes - -
8 Automatic Transmission Fluid Pump Bolt-M6 x 38.65 [4x] - - 15 N.m (11 lb ft)
9 Front Wheel Drive Shaft Oil Seal Yes - -
10 Automatic Transmission Fluid Temperature Sensor - - 12 N.m (9 lb ft)
11 Transmission Fluid Drain Plug-M12 x 16.25 Yes - 35 N.m (26 lb ft)
12 Automatic Transmission Fluid Pressure Test Hole Plug-M12 x 16.25 Yes - 35 N.m (26 lb ft)
GM5782896Courtesy of GENERAL MOTORS COMPANY

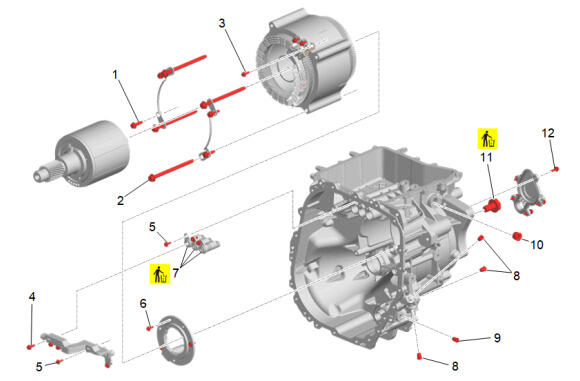

Drive Motor Housing Components 2 of 2

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Stator Bracket Bolt-M8 x 30.7 [4x] - - 36 N.m (27 lb ft) Front Electric Drive Transmission Module Overhaul
2 Drive Motor Stator Bolt-M10 x 156.5 [4x] - - 58 N.m (43 lb ft)
3 Drive Motor Power Inverter Module Connector Bolt-Stator -M6 x 20.65 [3x] - - 9 N.m (80 lb in)
4 Drive Motor Power Inverter Module Connector Bolt-M6 x 20.65 [3x] - - 9 N.m (80 lb in)
5 Drive Motor Power Inverter Module Connector Bolt-M5 x 17.6 [5x] - - 4.7 N.m (42 lb in)
6 Drive Motor Position Sensor Bolt-M5 x 17.6 [3x] - - 4.7 N.m (42 lb in)
7 Drive Motor Power Inverter Module Connector [3x] Yes - -
8 Transmission Fluid Drain Plug-M12 x 16.25 [4x] Yes - 35 N.m (26 lb ft)
9 Drive Motor Housing Plug-Large-M22 x 16.25 Yes - 40 N.m (30 lb ft)
10 Drive Motor Rotor Bearing Bolt-M18 x 31.9 Yes Yes 100 N.m (74 lb ft)
11 Drive Motor Housing Cover Bolt-M6 x 25.65 [5x] - - Drive Motor Housing Cover Bolt Sequence
GM6082035Courtesy of GENERAL MOTORS COMPANY
Drive Motor Mount Bolts and Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Mount Nut - - - Drive Motor Mount Replacement - Left Side
Drive Motor Mount Replacement - Right Side
2 Rear Drive Motor Rear Mount Bolt-M12 x 116 [2x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Left Side
Drive Motor Mount Replacement - Right Side

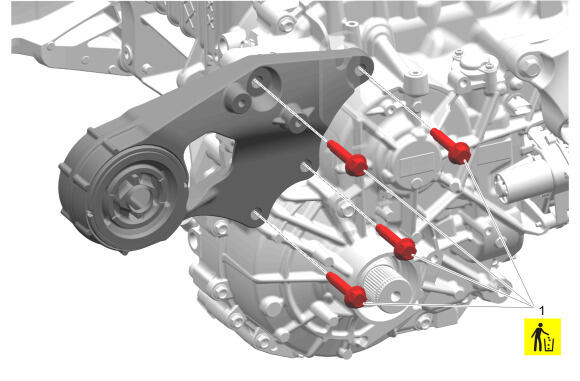

GM5904964Courtesy of GENERAL MOTORS COMPANY
Drive Motor Mount Bolts - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Drive Motor Mount Bolt-M12 x 60 [4x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Left Side

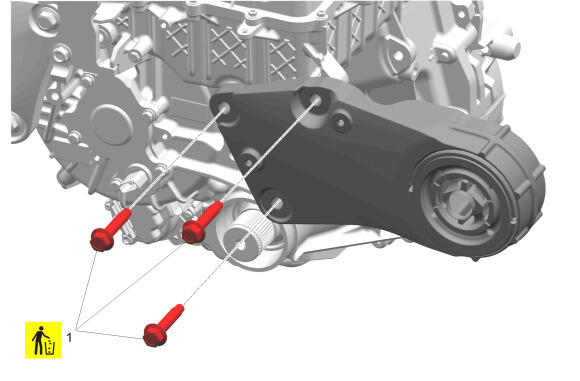

GM5904966Courtesy of GENERAL MOTORS COMPANY
Drive Motor Mount Bolts - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Rear Drive Motor Mount Bolt-M12 x 60 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Mount Replacement - Right Side

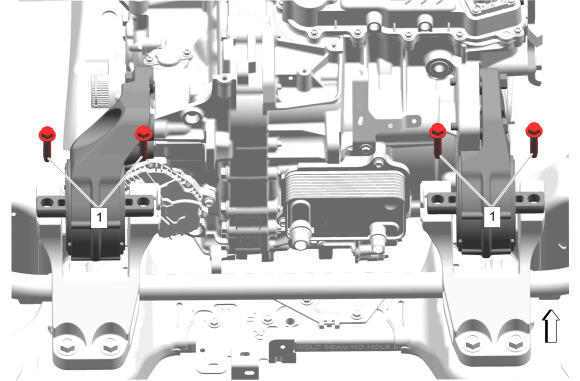

GM5904967Courtesy of GENERAL MOTORS COMPANY
Drive Motor Rear Mount Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt-M10 x 50.65 [4x] - - 58 N.m (43 lb ft) Drive Motor Rear Mount Replacement - Left Side
Drive Motor Rear Mount Replacement - Right Side
GM5904968Courtesy of GENERAL MOTORS COMPANY

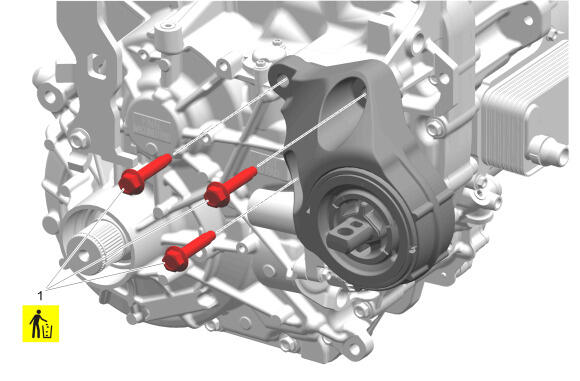

Drive Motor Rear Mount Bolts - Left Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt-M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Replacement - Left Side

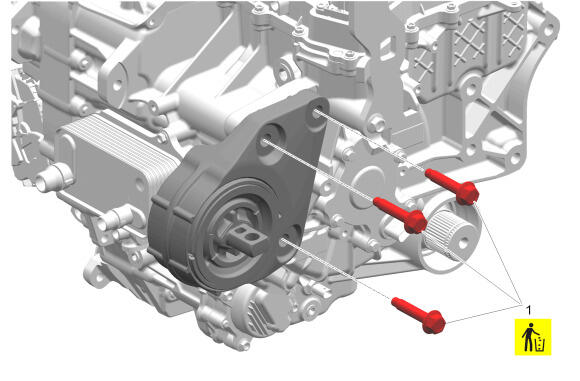

GM5904969Courtesy of GENERAL MOTORS COMPANY
Drive Motor Rear Mount Bolts - Right Side

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bolt-M12 x 60.90 [3x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Replacement - Right Side

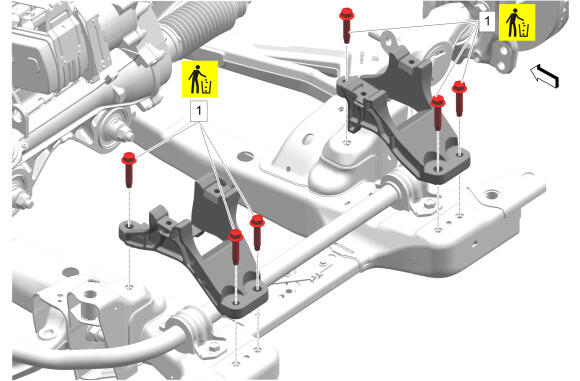

GM5905446Courtesy of GENERAL MOTORS COMPANY
Drive Motor Rear Mount Bracket Bolts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Rear Mount Bracket Bolt-M12 x 55.80 [6x] Yes - First Pass: 100 N.m (74 lb ft)
Final Pass: 60 - 75 degrees		 Drive Motor Rear Mount Bracket Replacement - Left Side
Drive Motor Rear Mount Bracket Replacement - Right Side
GM6083568Courtesy of GENERAL MOTORS COMPANY

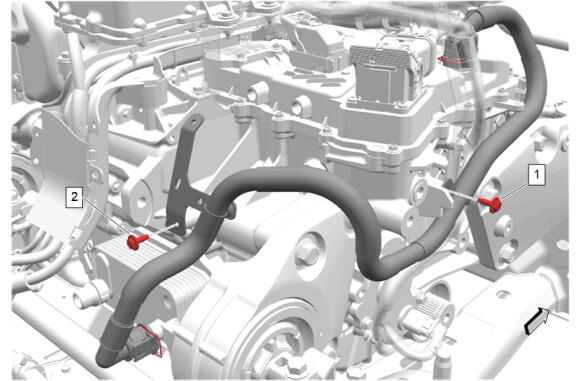

Front Electric Drive Transmission Module Cooler Coolant Hose

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement
2 Heater Coolant Heater Bolt - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Replacement

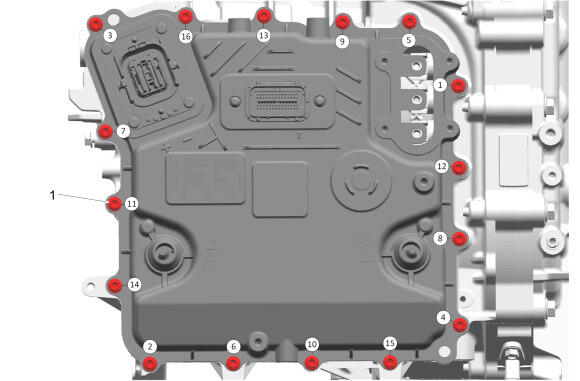

Drive Motor Power Inverter Module Bolt Sequence
GM5782969Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Inverter Module Bolt-M5 x 22.65 [16x] - - 8.5 N.m (75 lb in) Front Electric Drive Transmission Module Overhaul

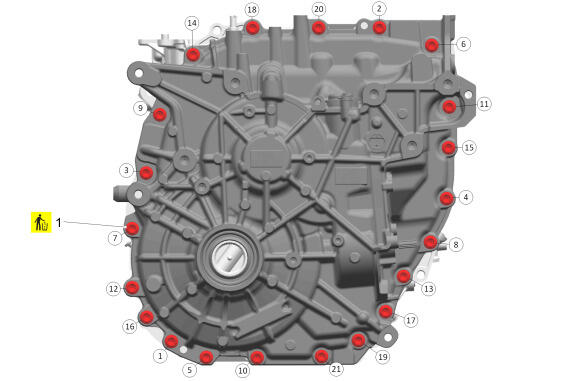

Automatic Transmission Case Bolt Sequence
GM5782971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Case Bolt-M8 x 67.9 [21x] Yes - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul

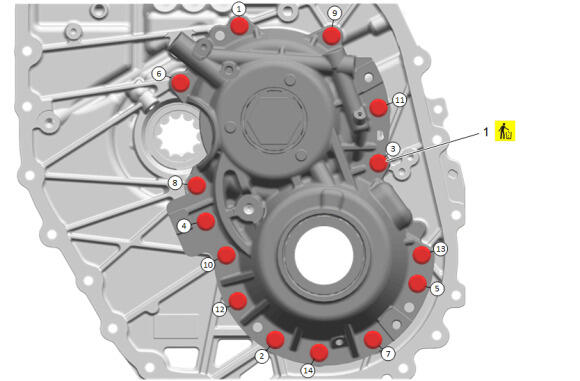

Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt Sequence
GM5782973Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Final Drive Pinion Gear Bearing Support Bolt-M8 x 35.4 [14x] Yes - First Pass: 20 N.m (15 lb ft)
Final Pass: 94 degrees		 Front Electric Drive Transmission Module Overhaul

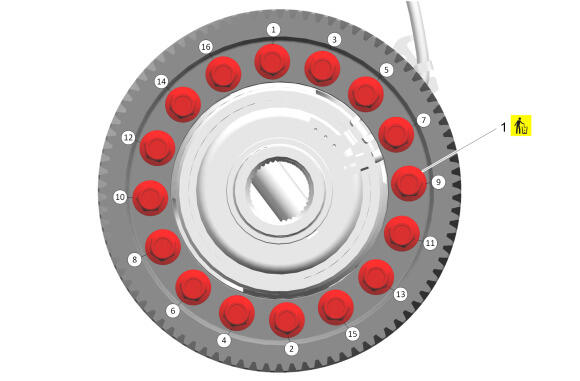

Automatic Transmission Differential Final Drive Ring Gear Bolt Sequence
GM5782974Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Differential Final Drive Ring Gear Bolt-M12 x 40 [16x] Yes - First Pass: 20 N.m (15 lb ft)
Final Pass: 124 degrees		 Front Electric Drive Transmission Module Overhaul

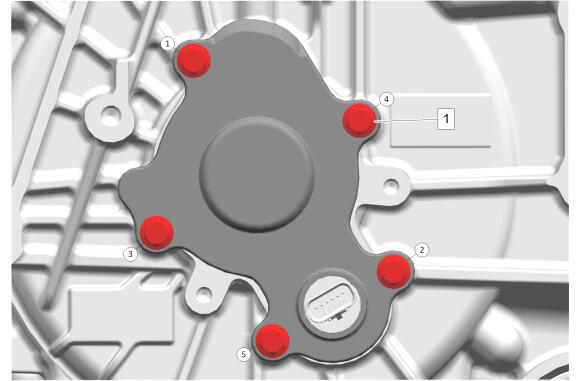

Drive Motor Housing Cover Bolt Sequence
GM5782976Courtesy of GENERAL MOTORS COMPANY
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Housing Cover Bolt-M6 x 25.65 [5x] - - 9 N.m (80 lb in) Front Electric Drive Transmission Module Overhaul
