Fastener Specifications
 Courtesy of GENERAL MOTORS COMPANY
|

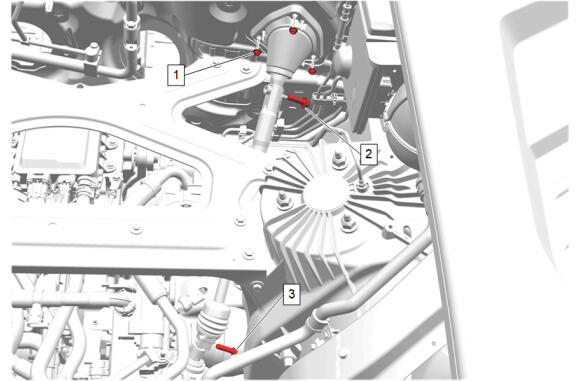

Intermediate Steering Shaft
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Seal Nut [3x] |
- |
- |
9 N.m (80 lb in) |
Intermediate Steering Shaft Boot Replacement |
| 2 |
Mid Intermediate Steering Shaft Bolt |
- |
Yes |
58 N.m (43 lb ft) |
Intermediate Steering Shaft Replacement |
| 3 |
Intermediate Steering Shaft Lower Bolt |
- |
Yes |
50 N.m (37 lb ft) |
Intermediate Steering Shaft Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|

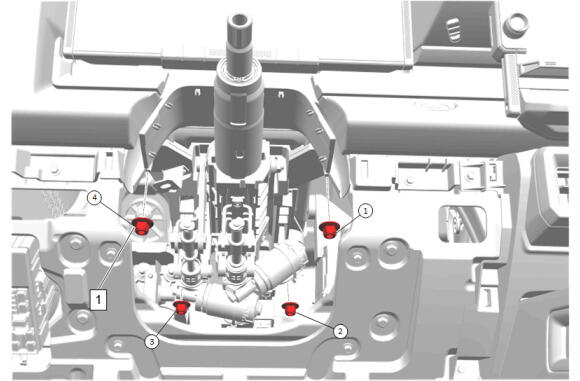

Steering Column
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Nut [4x] |
- |
- |
Steering Column Nut Sequence |
Steering Column Replacement |
| 2 |
Upper Intermediate Steering Shaft Bolt |
- |
Yes |
45 N.m (33 lb ft) |
Upper Intermediate Steering Shaft Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|

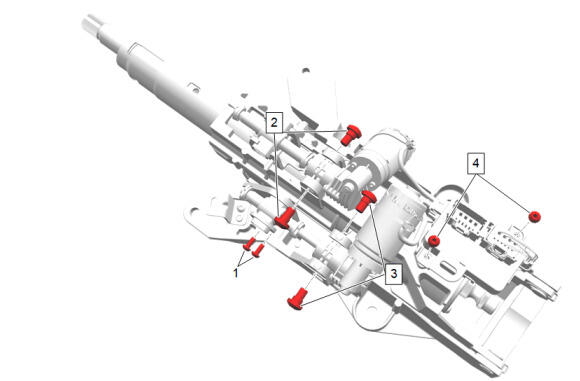

Steering Column Components
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Bracket Bolt [2x] |
- |
- |
8 N.m (71 lb in) |
Steering Column Tilt Wheel Actuator Motor Replacement |
| 2 |
Steering Column Telescope Actuator Bolt [2x] |
- |
Yes |
14 N.m (10 lb ft) |
Steering Column Telescope Actuator Motor Replacement |
| 3 |
Steering Column Tilt Wheel Actuator Bolt [2x] |
- |
Yes |
14 N.m (10 lb ft) |
Steering Column Tilt Wheel Actuator Motor Replacement |
| 4 |
Steering Column Control Module Bracket Bolt [2x] |
- |
- |
4.5 N.m (40 lb in) |
Steering Column Control Module Replacement |
 Courtesy of GENERAL MOTORS COMPANY
|

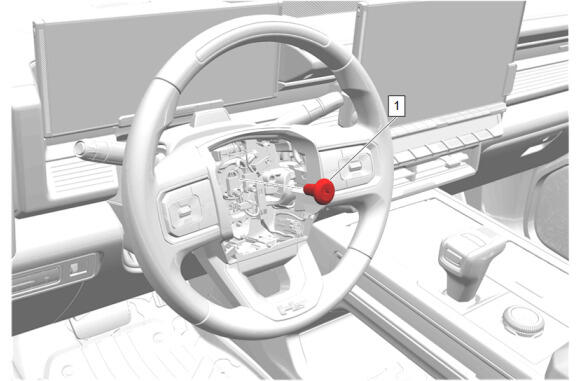

Steering Wheel
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Wheel Bolt |
- |
Yes |
45 N.m (33 lb ft) |
Steering Wheel Replacement |

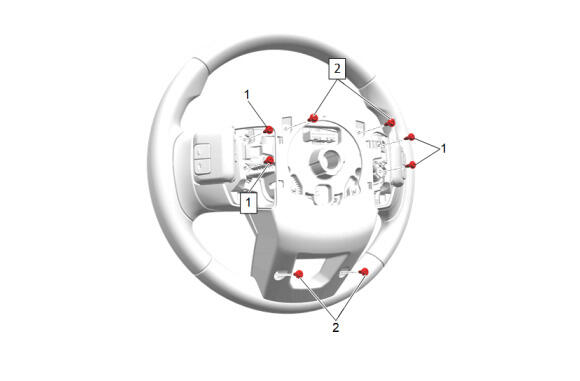

 Courtesy of GENERAL MOTORS COMPANY
|
Steering Wheel Shroud
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Wheel Bolt [4x] |
- |
- |
3.5 N.m (31 lb in) |
Steering Wheel Shroud Replacement |
| 2 |
Steering Wheel Spoke Cover Bolt [4x] |
- |
- |
1.1 N.m (10 lb in) |
Steering Wheel Shroud Replacement |

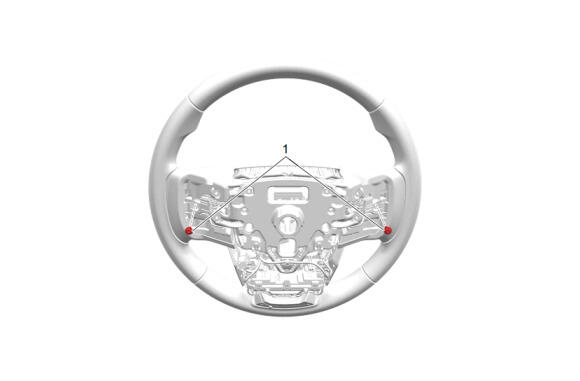

 Courtesy of GENERAL MOTORS COMPANY
|
Steering Wheel Trim Spoke Cover Applique
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Wheel Bolt [2x] |
- |
- |
1.1 N.m (10 lb in) |
Steering Wheel Trim Spoke Cover Applique Replacement |

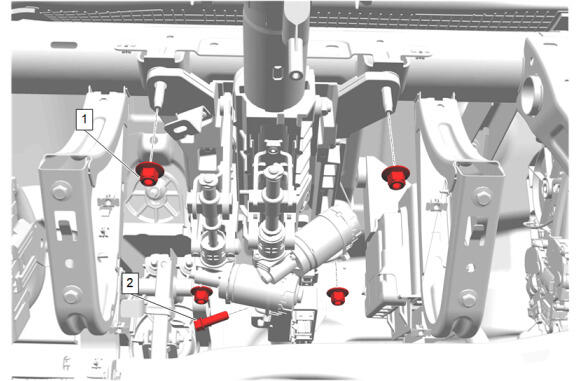

| Steering Column Nut Sequence |
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name [Component Quantity] |
Single Use Fastener/Component |
Thread Locking Adhesive Required |
Specification |
Procedure |
| Metric (English) |
| 1 |
Steering Column Nut [4x] |
- |
- |
22 N.m (16 lb ft) |
Steering Column Replacement |
