Installation Procedure

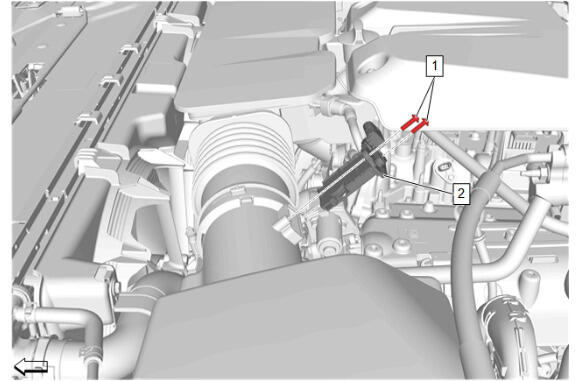

  1. GM6141095Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Mass Airflow Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
