Installation Procedure

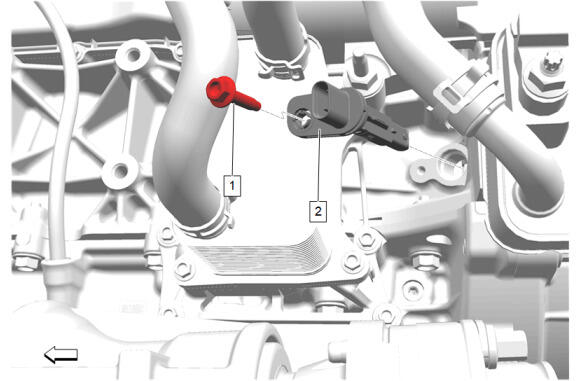

  1. GM6137460Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Position Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. Install underbody panels as necessary. Underbody Panel Component Locator
  5. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
