Installation Procedure

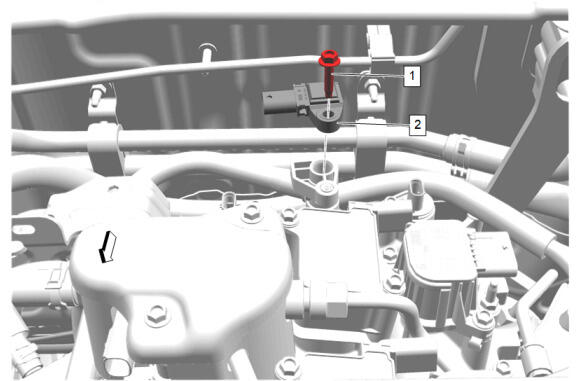

GM6199836Courtesy of GENERAL MOTORS COMPANY
  1. Crankcase Pressure Sensor (2) - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankcase Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the electrical connector.
  4. GM6148346Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  5. GM6148335Courtesy of GENERAL MOTORS COMPANY

    If equipped, push down on the front of the intake manifold cover (2).

  6. {If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
