Installation Procedure

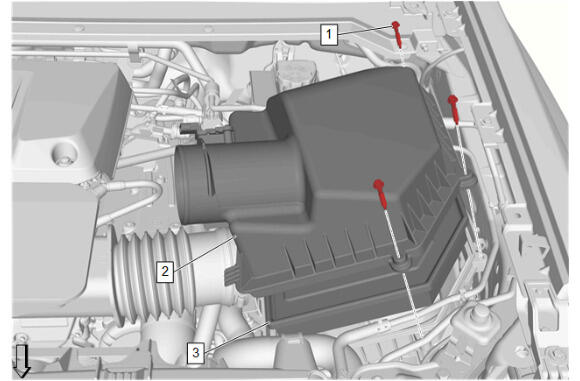

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Element (3) - Install
Air Cleaner Upper Housing (2) - Install

CAUTION:

Refer to Fastener Caution .

Air Cleaner Housing Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (2) - Install
Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
