Installation Procedure

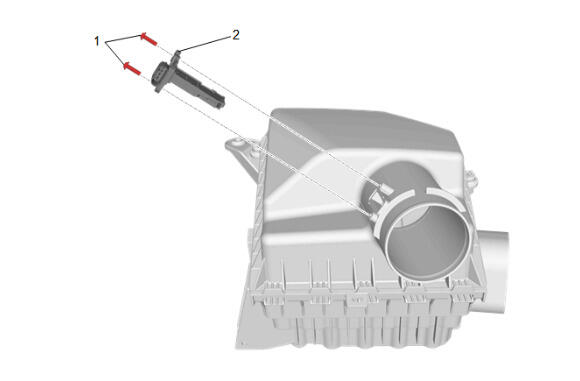

  1. GM6141065Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Mass Airflow Sensor Bolt (1) - Install and tighten [2x] - Fastener Specifications

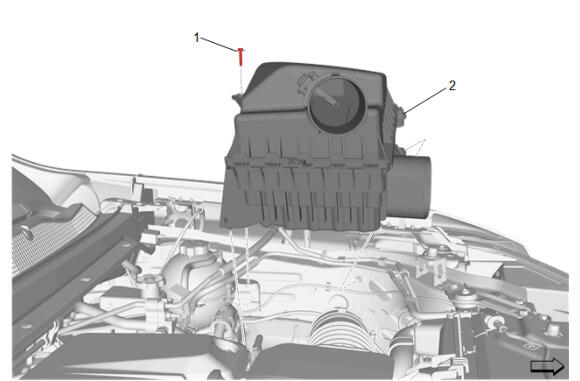

  3. GM6141057Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install

  4. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  5. Connect the electrical connector and install the wiring harness retainers as necessary.

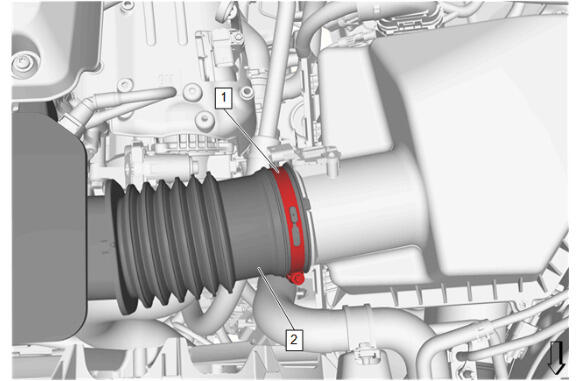

  6. GM6141049Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (2) - Install

  7. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
