Installation Procedure

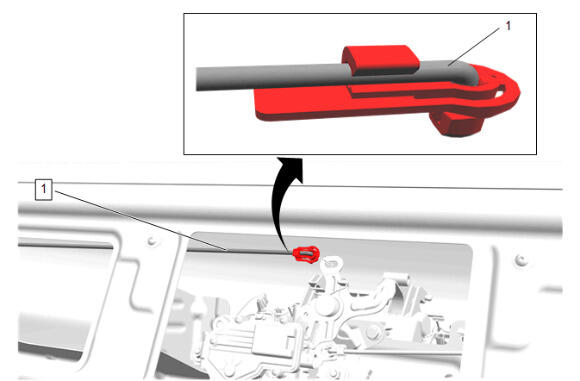

  1. GM6163286Courtesy of GENERAL MOTORS COMPANY

    Install the pickup box endgate latch rod (1) into the tailgate.

  2. Install the pickup box endgate latch rod (1) to the pickup box endgate lock actuator.

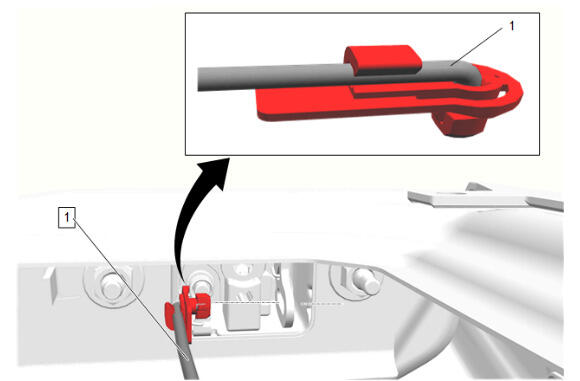

  3. GM6163285Courtesy of GENERAL MOTORS COMPANY

    Install the pickup box endgate latch rod (1) to the pickup box endgate latch.

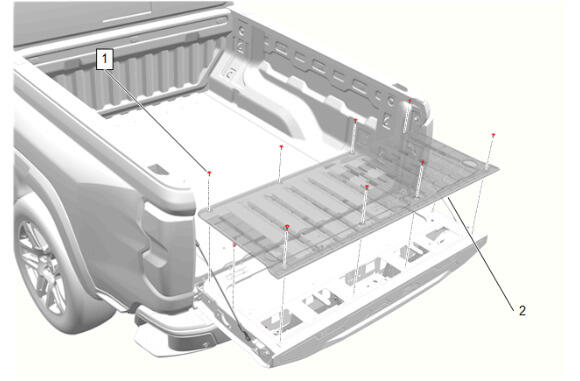

  4. GM6145434Courtesy of GENERAL MOTORS COMPANY

    Pickup Box Endgate Access Hole Cover Panel (2) - Install

    5. CAUTION:

    Refer to Fastener Caution .

  5. Pickup Box Endgate Access Hole Cover Panel Bolt (1) - Install and tighten [8x] - Fastener Specifications
  6. Close The Endgate
