Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

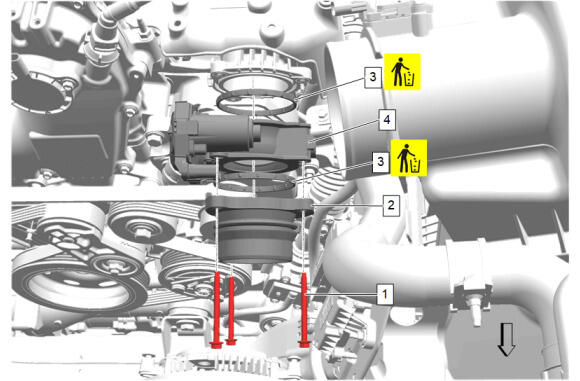

Throttle Body Seal (3) - Install NEW [2x]
Throttle Body (4) - Install
Throttle Body Adapter (2) - Install

CAUTION:

Refer to Fastener Caution

Throttle Body Bolt (1) - Install and tighten [3x] - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Verify the charge air cooler inlet and outlet air tube quick connect seal condition and location prior to installation. Seal must be evenly seated in the quick connector body and sealing surface must be free of deformation and damage. Deformed or damaged seals can lead to reduced engine power and/or engine stalling.

NOTE:
DO NOT insert fingers inside quick connect to manipulate duct during disassembly/assembly. Rubber pad gloves increase risk to dislodge seal.

Charge Air Cooler Outlet Air Hose (2) - Install
Engage the charge air cooler outlet air hose retainer spring (1).
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
Evaporative Emission Canister Purge Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
Positive Crankcase Ventilation Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
Air Cleaner Outlet Duct Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

If equipped, push down on the front of the intake manifold cover (2).
{If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
