Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

Engine Oil Pressure Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

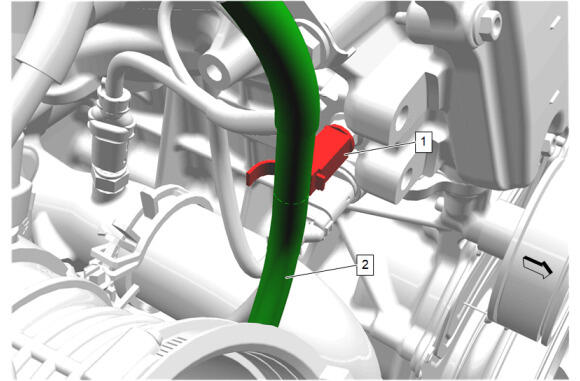

Engine Wiring Harness (2) - Install
Retainer (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Air Cleaner Outlet Duct Clamp (2) - Tighten - Fastener Specifications
Evaporative Emission Canister Purge Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
Positive Crankcase Ventilation Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
Air Cleaner Outlet Duct Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

If equipped, push down on the front of the intake manifold cover (2).
{If equipped} Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
