Installation Procedure

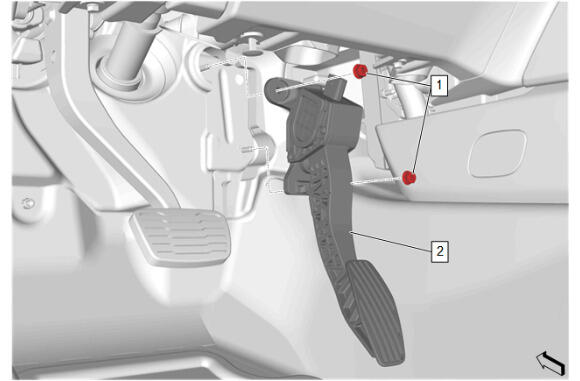

  1. GM6140352Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    When installing the Accelerator Pedal do NOT use a mallet or excessive force on the pedal assembly or damage to the pedal assembly could occur, requiring replacement of the pedal assembly.

    Accelerator Pedal (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Accelerator Pedal Nut (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
