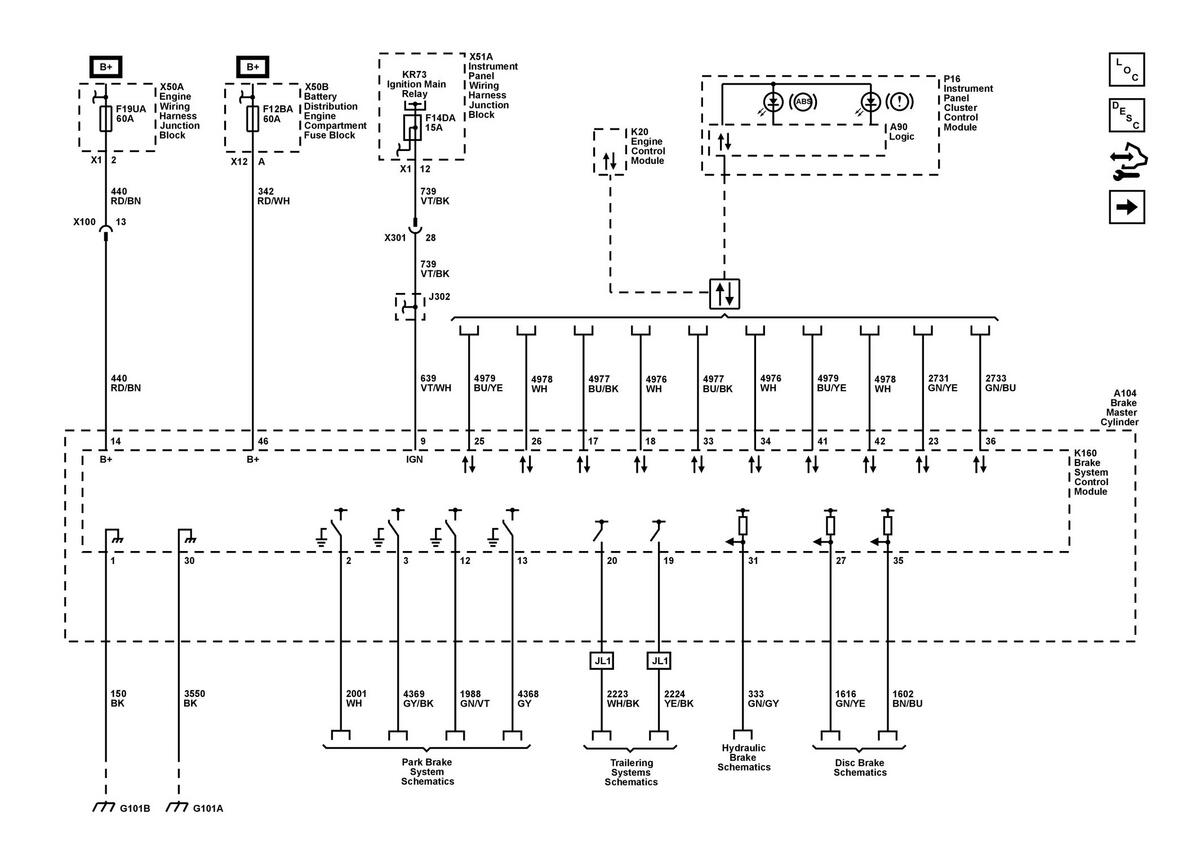

Module Power, Ground, Serial Data, Indicators, and Subsystem References

GM6174496Courtesy of GENERAL MOTORS COMPANY
