Installation Procedure

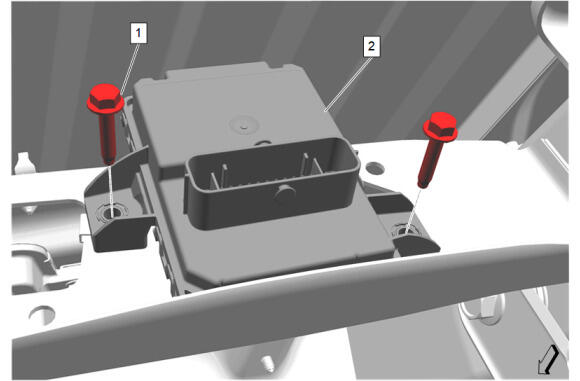

  1. GM6182602Courtesy of GENERAL MOTORS COMPANY

    Trailer Lamp Control Module (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Trailer Lamp Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications

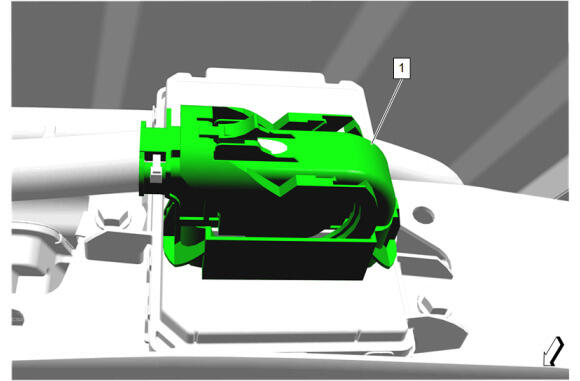

  3. GM6182600Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Trailer Lamp Control Module - Connect

  4. Spare Tire - Install
  5. Remove the support and lower the vehicle.
  6. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  7. Reprogram the trailer lamp control module. Control Module References
