Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Spare Tire - Remove

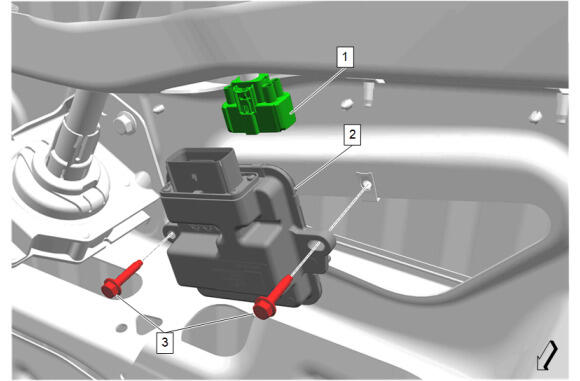

  4. GM6147039Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Trailer Brake Control Module - Disconnect

  5. Trailer Brake Power Control Module Bolt (3) - Remove [2x]
  6. Trailer Brake Control Module (2) - Remove
