Installation Procedure

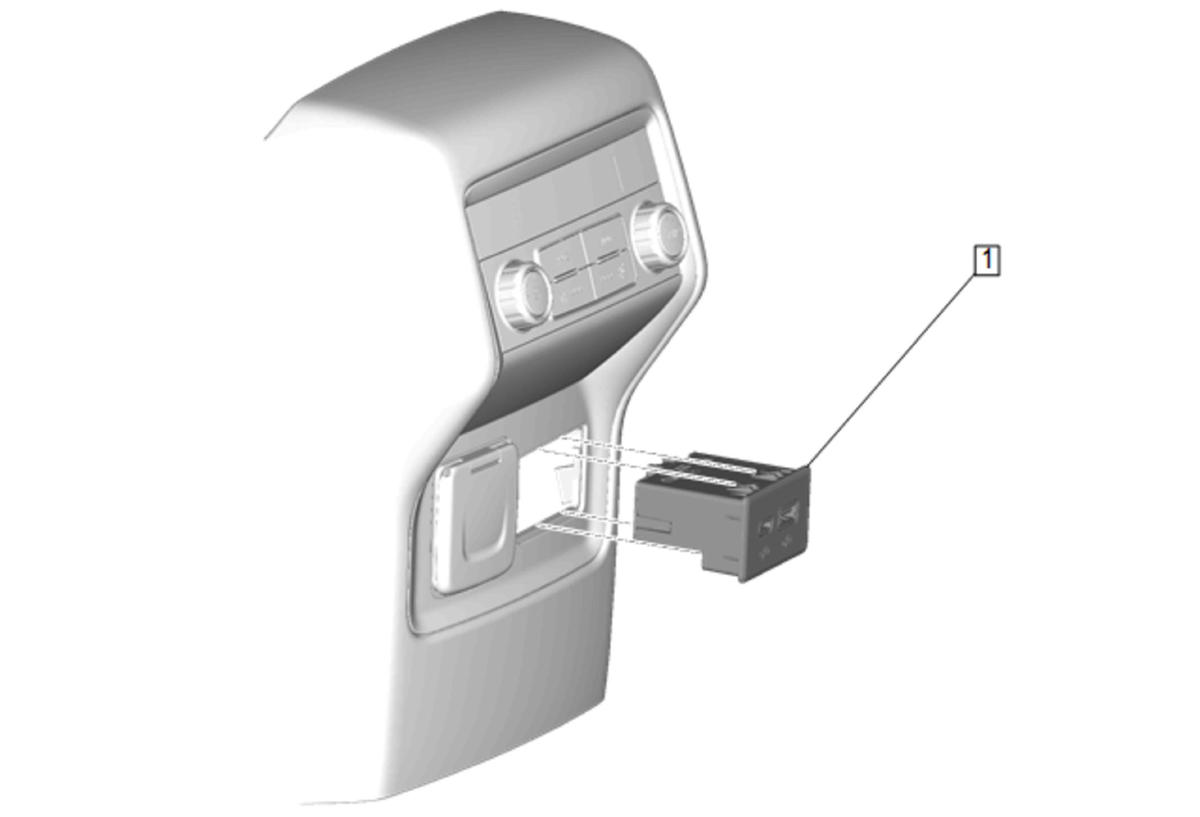

  1. GM5356054Courtesy of GENERAL MOTORS COMPANY

    Dual Charge Only Receptacle (1) - Install

  2. GM5355258Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Install - Front Floor Console Rear Trim Panel Replacement (with Rear Vent)Front Floor Console Rear Trim Panel Replacement (with Auxiliary Heater and AC Control)
